2 Basic repair procedures Chapter E: Basic repair procedures
196 Planmeca PlanMill 40 Technical manual

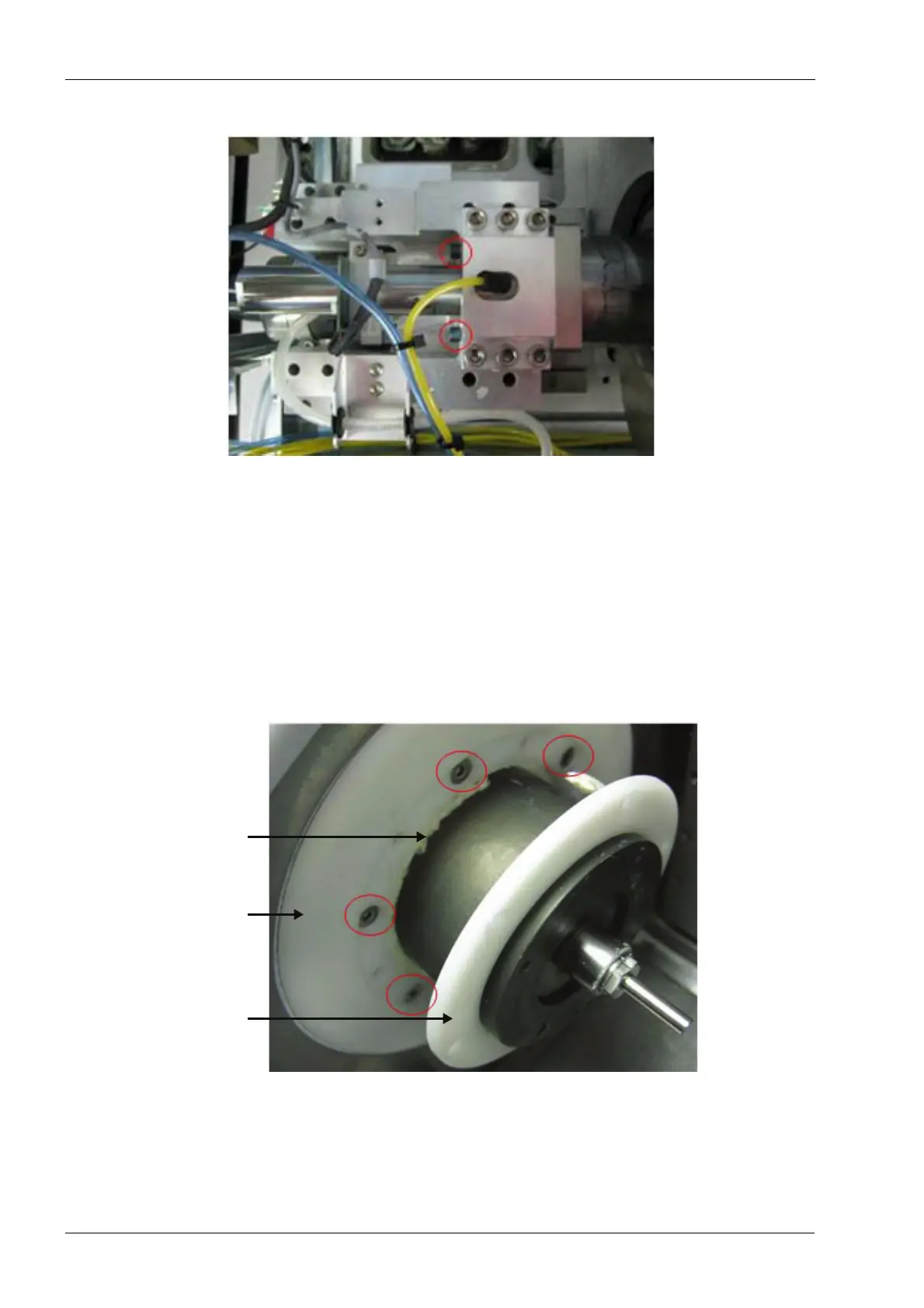

Figure 240: Remove spindle housing screws
3. Use a T handle Allen key to engage the one touch fitting and remove tubing from the
spindle housing.
4. Locate and remove the (6) flat head screws retaining the inner seal cap.
5. Slide the inner seal cap off of the spindle housing and remove the (5) flathead screws
retaining the inner seal flange.
6. Remove the rope packing and slide the inner seal flange off of the spindle
There are 2 retainer plates on the back side of the seal flange. As the screws are removed
these will become free, be sure to secure these plates with your hand.
Figure 218: Removing inner seal cap, rope packing and inner seal flange
7. Slide the spindle housing up and out through the grind chamber.
8. Remove the one touch fitting from the spindle housing to use with new spindle
housing.
Rope
packing
Inner
seal
flange
Inner
seal
cap
