9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
4.29

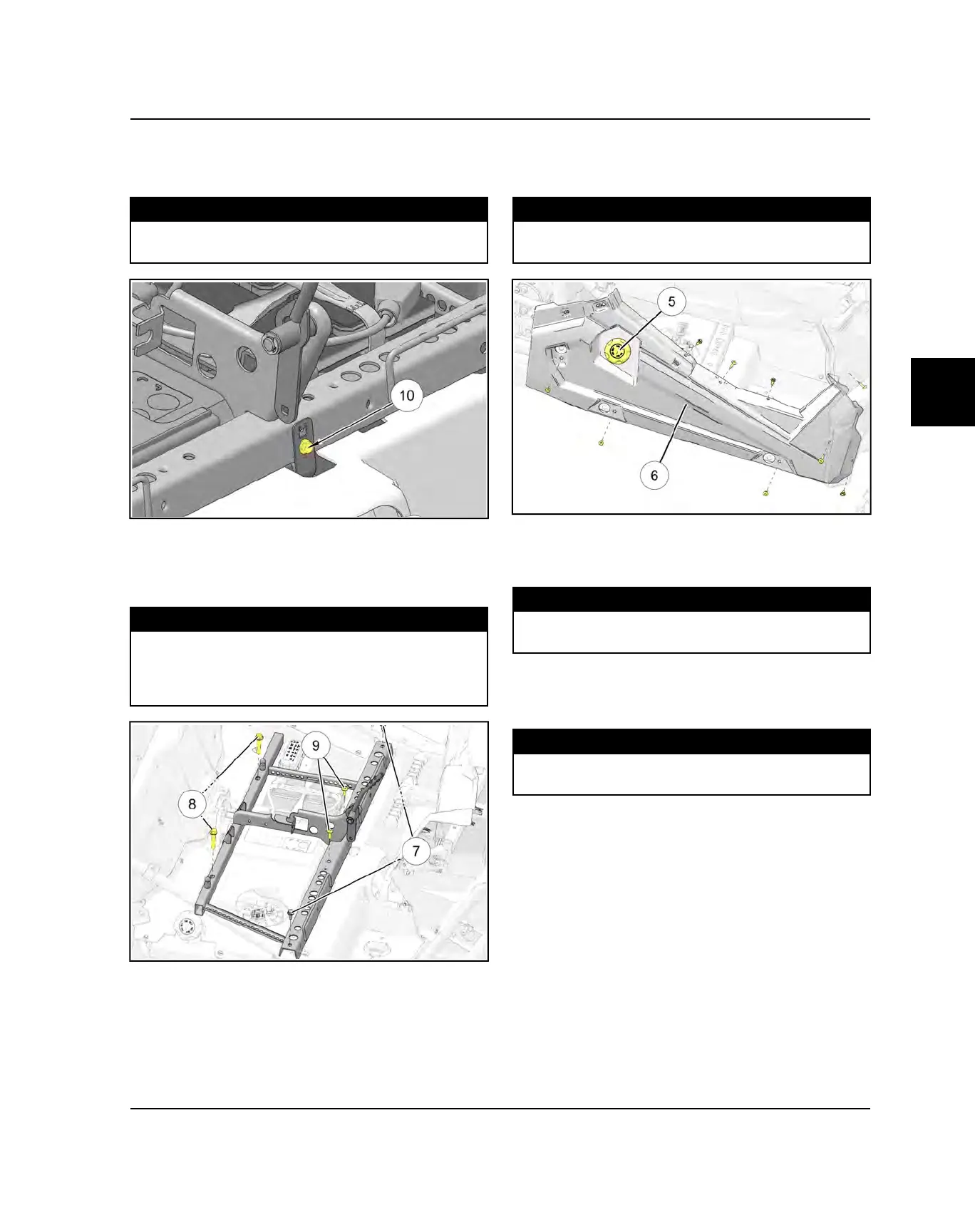

5. Install the T-40 Torx screw
a
retaining the fuel tank
strap to the seat base frame. Torque fastener to
specification.
TORQUE
Fuel Tank Strap Fastener:
8 ft-lbs (11 Nm)
6. Install the seat base assembly into the vehicle. Install
the two bolts
u
and two T40 Torx screws
o
retaining
the front of the seat base frame and two rear bolts
i
.
Torque fasteners to specification.
TORQUE
Seat Frame Fasteners:
M8 Bolts: 14 ft-lb (19 Nm)
M10 Bolts: 30 ft-lb (41 Nm)
7. Install the push rivets and Torx screws retaining the
passenger side rocker panel
y
. Torque fasteners to
specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
8. Install the push rivets and Torx screws retaining the
rear fender flair and rear fender. Torque fasteners to
specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
9. Install the shift linkage to the shifter. Install the shift
cable to the shifter bracket and tighten the outer jam
nut. Torque jam nut to specification.
TORQUE
Shift Cable Jam Nut:
16 ft-lb (22 Nm)
EFI / FUEL SYSTEM
