4.30
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

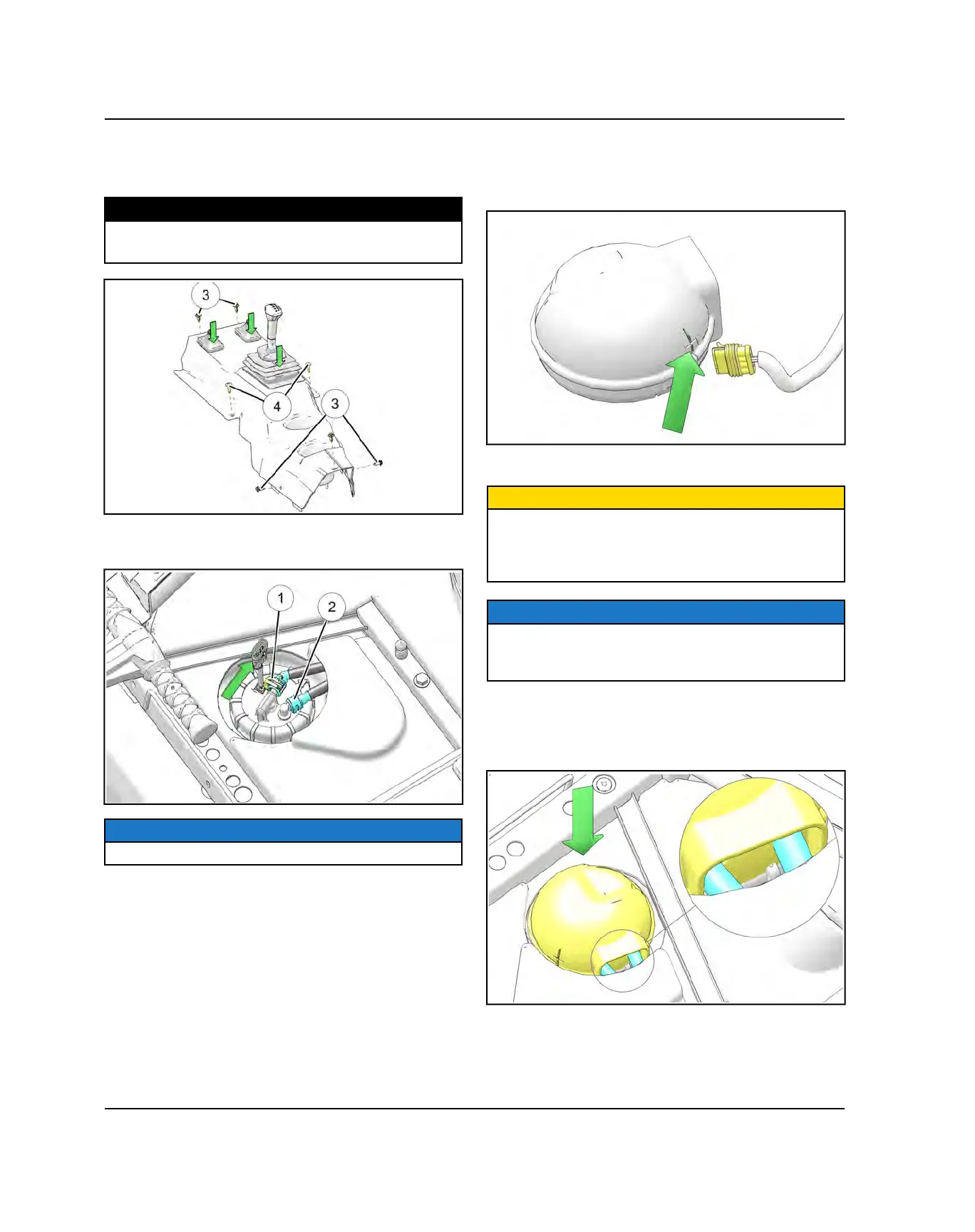

10.Install the plastic rivets
e
and Torx screws
r
retain-
ing the center console. Torque fasteners to
specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
11. Connect the fuel supply line
q
and return line
w
to
the fuel pump.
NOTICE
There is no return line on EVAP models.
12.If the fuel pump cover was fully removed, push the
chassis side fuel pump electrical connector through
the “+” shaped pass-through of the fuel pump cover
next to the fuel line opening.
13.Connect the fuel pump electrical harness.
CAUTION
The harness protection tape must be pushed all the
way through the cap opening. If the wires are not
protected from the cap by the harness protection tape,
they will wear through over time.
NOTICE
The connectors will be housed in the cap when properly
installed. Do NOT pull the pump flying lead connector
through the “+” cutout.
14.Orient the fuel pump cover so that the fuel lines pass
through the opening, and push down around the
edges to ensure the cover is fully engaged around the
pump nut.
EFI / FUEL SYSTEM
