7
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.
7.39

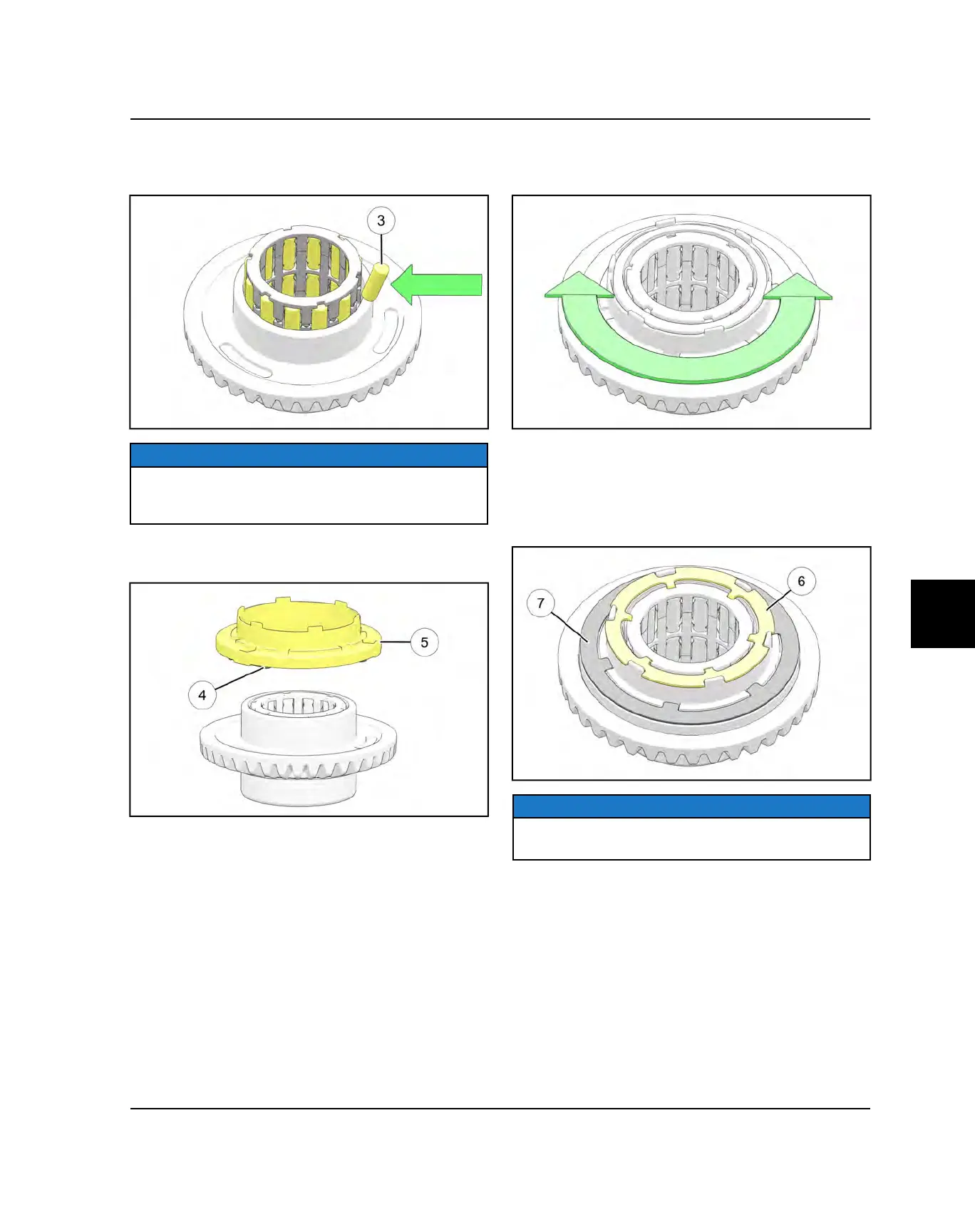

6. Carefully install the rollers
e
into the roll cage
assembly while installing the assembly into the clutch
housing.
NOTICE
Install roll cage so the ring gear grooves line up with the
roll cage windows. Be sure roll cage top groove is
facing upward.
7. Install the springs
r
and spring retainer assembly
t
onto the ring gear.
8. Check the action of the springs by rotating in both
directions to ensure the spring and retainer are
installed properly.
9. Install the armature plate
y
and cage plate
u
. Be
sure all of the armature plate tabs are fully engaged
into the roll cage assembly and that it is resting
properly on the spring retainer. Be sure the cage plate
is resting properly on the spring retainer, and all tabs
are fully engaged.
NOTICE
Verify armature plate tabs are in the roll cage slots and
that it rests properly on the spring retainer.
FINAL DRIVE
