7.40
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
© Copyright Polaris Industries Inc.

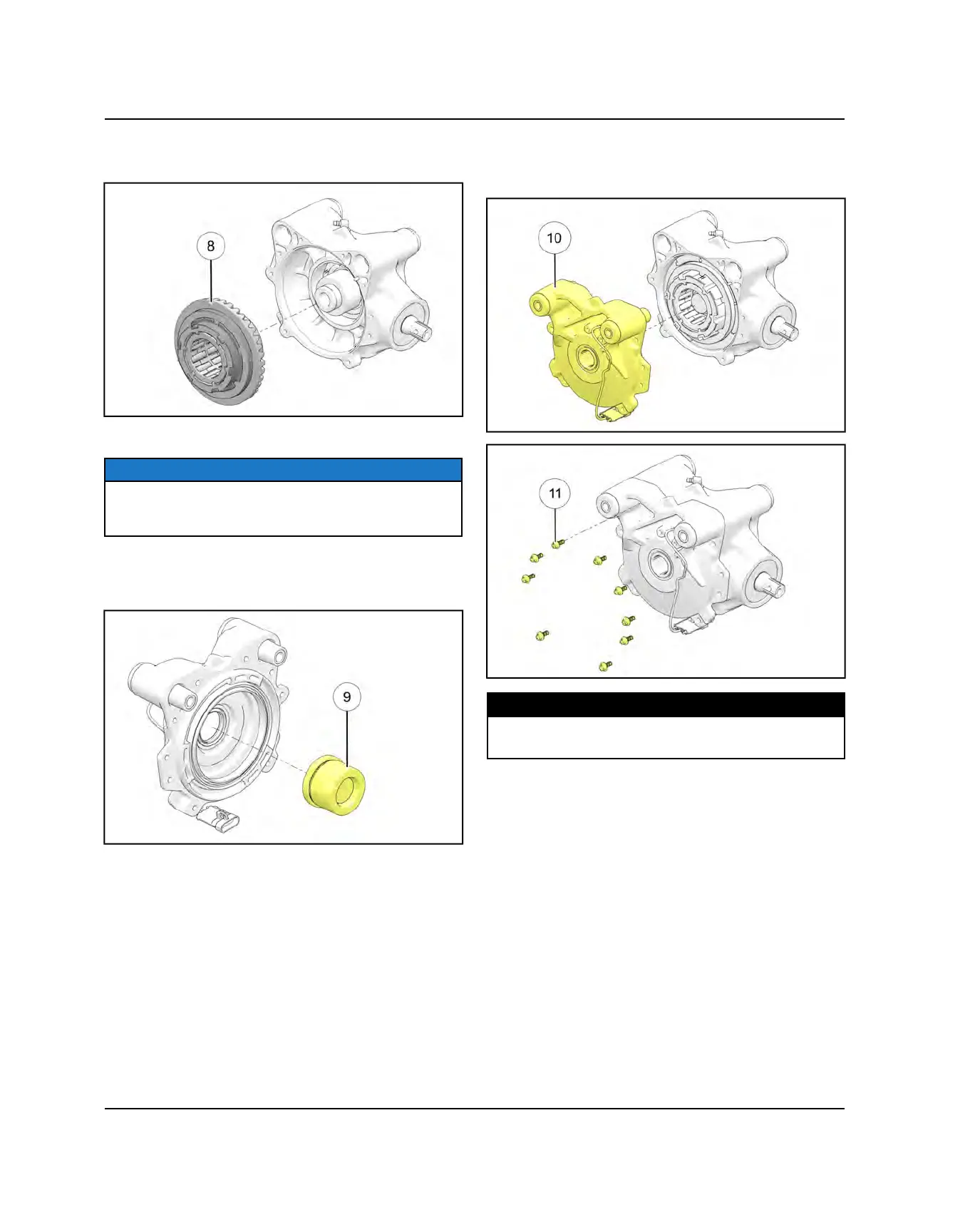

10.Carefully install the ring gear and roll cage assembly
i
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
NOTICE
Be sure the square O-ring is placed flat on the cover
surface. If the O-ring is twisted, fluid leakage may
occur.
12.Carefully install the LH output hub assembly
o
into
the cover plate. Take care not to damage the new
cover plate seal while installing the output hub.
13.Install the output cover assembly
a
onto the
gearcase housing. Install the nine cover plate screws
s
and torque to specification.
TORQUE
Cover Plate Screws:
11 ft-lbs (15 Nm)
FINAL DRIVE
