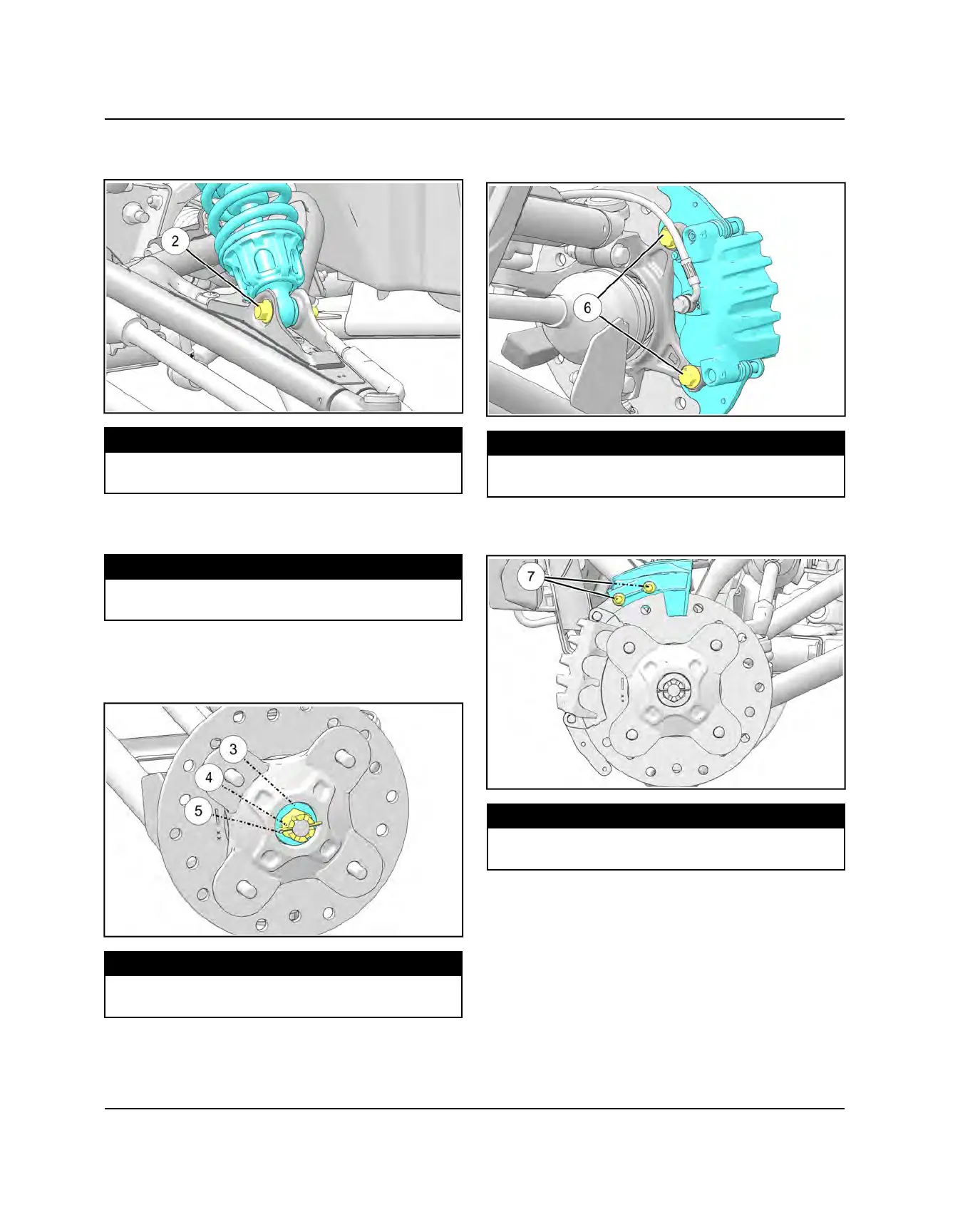

11. Install the lower shock mounting fastener
w
. Torque
to specification.
TORQUE
Shock Mounting Fasteners:
70 ft-lbs (95 Nm)
12.Install the tie rod end and fastener. Repeat step for
remaining side.
TORQUE
Tie rod end:
30 ft-lbs (41 Nm) + 90°
13.Install hub assembly.
14.Install cone washer
e
, tighten castle nut
r
, and
install NEW cotter pin
t
.Torque to specification.
TORQUE
Hub Castle Nut:
180 ft-lbs (244 Nm)
15.Install front brake caliper and secure with fasteners
y
. Torque to specification.
TORQUE
Front Brake Caliper Mounting Bolts:
30 ft-lb (41 Nm)
16.Install wheel scraper and mounting fasteners
u
.
Torque to specification.
TORQUE
Wheel Scraper Mounting Fasteners:
7 ft-lbs (10 Nm)
