17.Install lower stabilizer link fastener
i
. Torque to
specification.
TORQUE
Stabilizer Bar Linkage:
70 ft-lbs (95 Nm)
18.Repeat steps 8-17 for the remaining side.

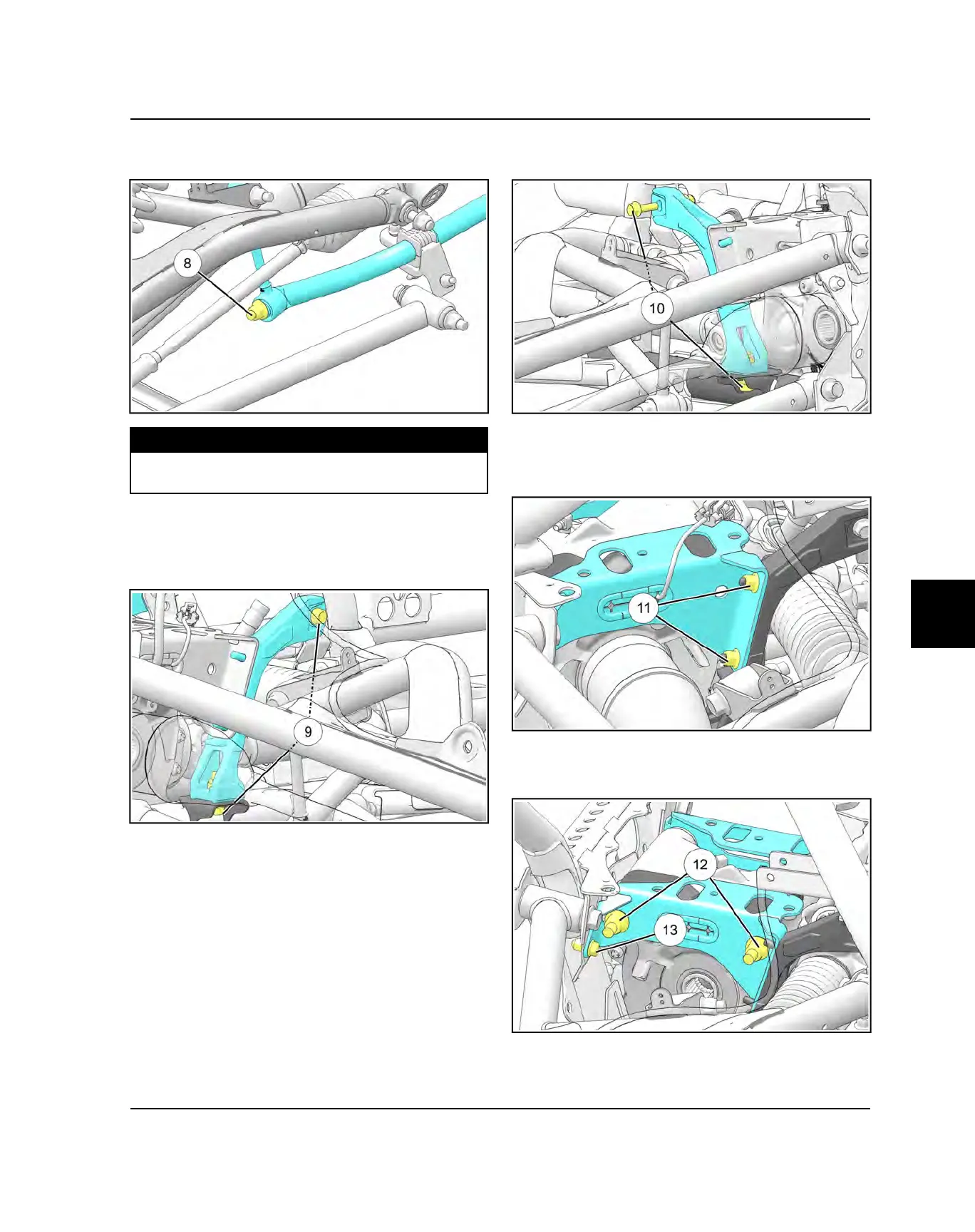

19.Align the left side steering rack mounting cast with its
mounting holes. Loosely install two mounting cast
fasteners
o
.
20.Install the right side steering rack mounting cast.
Loosely install the two mounting cast fasteners
a
.
21.Install the front drive mounting brackets and loosely
install the fasteners retaining them to the steering
rack mounting cast
s
. Repeat step for opposite side
of vehicle.
22.Loosely install the front isolator bolts
d
as well as the
front drive mounting bracket fasteners
f
securing the
brackets to the chassis.
FINAL DRIVE
