7.45

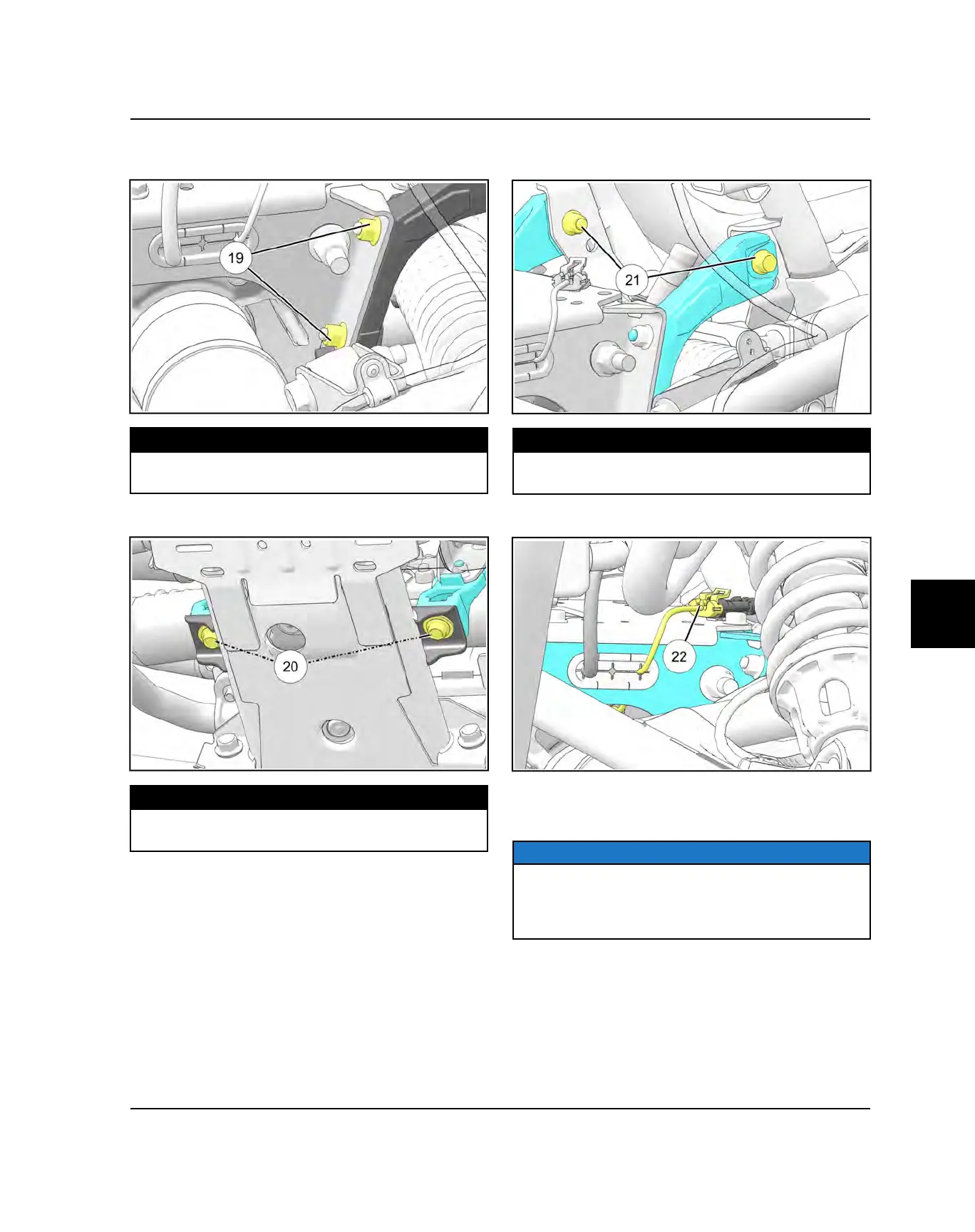

27.Torque the rear fasteners
1 (
on the front drive
mounting bracket.
TORQUE
Front Drive Mounting Bracket Fasteners (Rear):
24 ft-lbs (33 Nm)
28.Torque lower steering casting fasteners
2)
.
TORQUE
Steering Cast Mounting Fasteners (Lower):
42 ft-lbs (57 Nm)
29.Torque the upper steering cast mounting fasteners
2!
.
TORQUE
Steering Cast Mounting Fasteners (Upper):
22 ft-lbs (30 Nm)
30.Connect the front gearcase harness
2@
.
31.Add the proper lubricant to the front gearcase. Refer
to the Maintenance chapter for fluid fill and change
information. Do NOT overfill.
NOTE
Recommended Front Gearcase Fluid:
Demand Drive Fluid
Capacity:
8.5 oz (250 mL)
FINAL DRIVE
