8.13

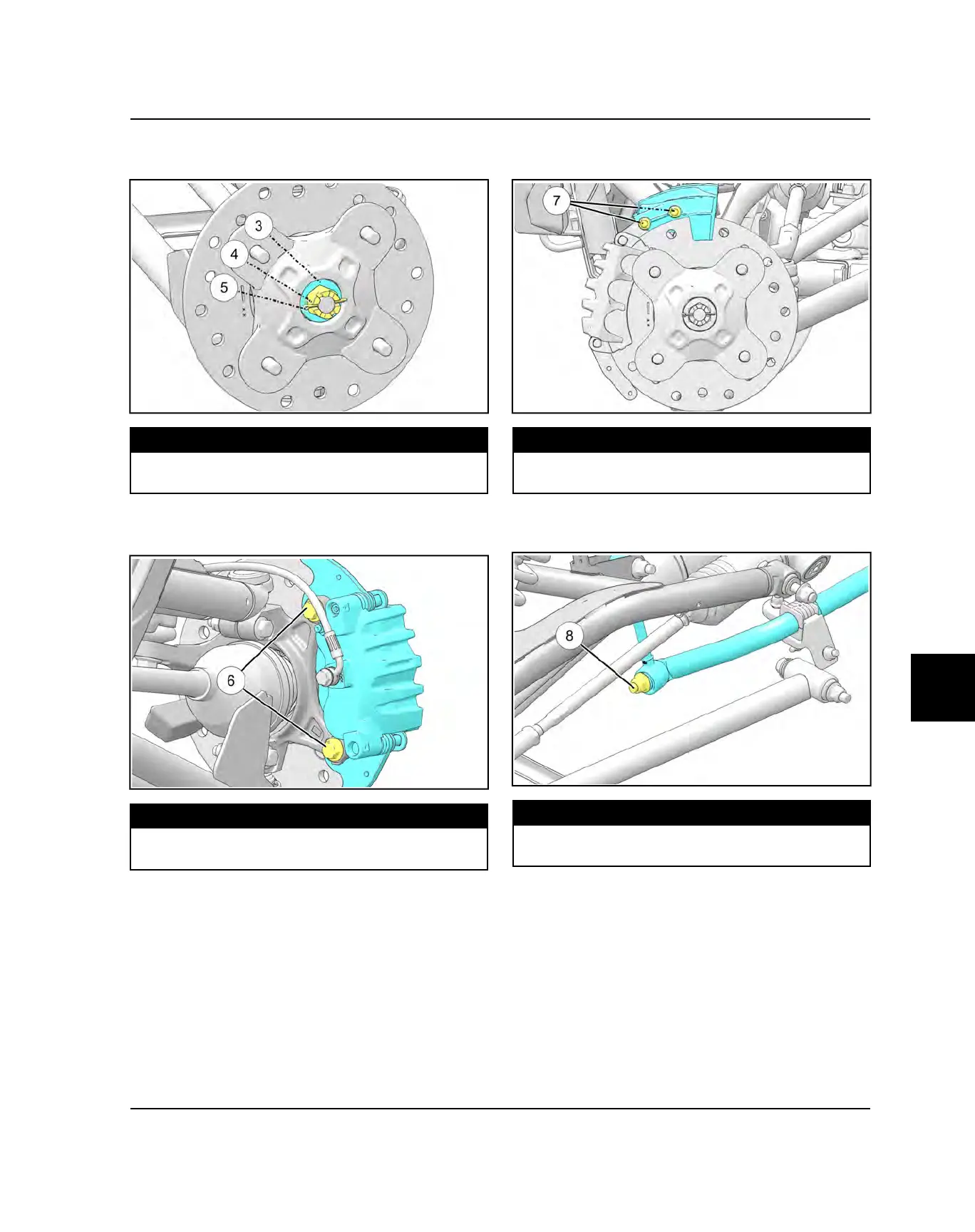

11. Install cone washer
e
, tighten castle nut
r
, and
install NEW cotter pin
t
.Torque to specification.
TORQUE
Hub Castle Nut:
180 ft-lbs (244 Nm)
12.Install front brake caliper and secure with fasteners
y
. Torque to specification.
TORQUE
Front Brake Caliper Mounting Bolts:
30 ft-lb (41 Nm)
13.Install wheel scraper and mounting fasteners
u
.
Torque to specification.
TORQUE
Wheel Scraper Mounting Fasteners:
7 ft-lbs (10 Nm)
14.Install lower stabilizer link fastener
i
. Torque to
specification.
TORQUE
Stabilizer Bar Linkage:
70 ft-lbs (95 Nm)
15.Repeat steps 5-14 for the opposite side of the
vehicle.
