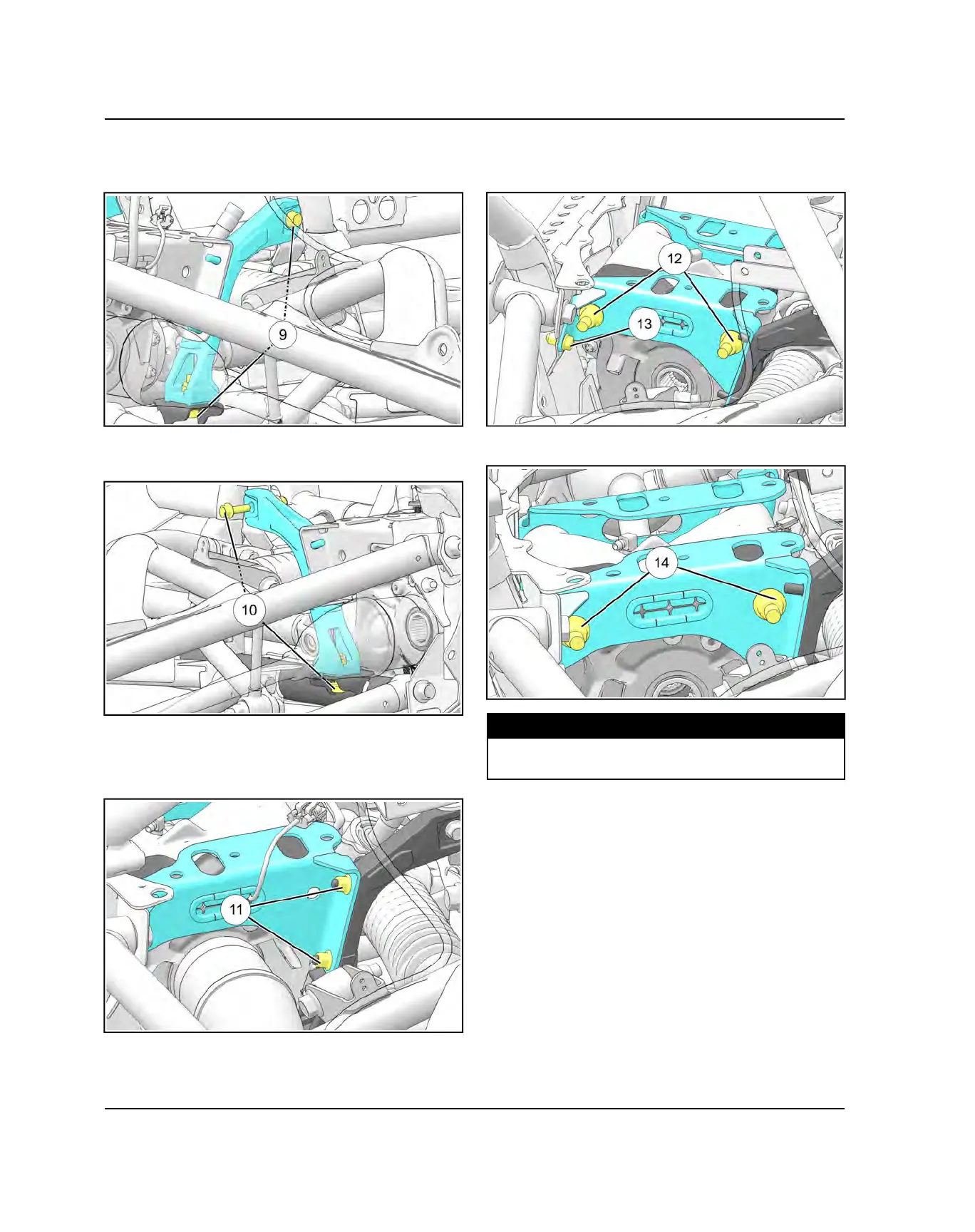

16.Align the left side steering rack mounting cast with its
mounting holes. Loosely install two mounting cast
fasteners
o
.
17.Install the right side steering rack mounting cast.
Loosely install the two mounting cast fasteners
a
.
18.Install the front drive mounting brackets and loosely
install the fasteners retaining them to the steering
rack mounting cast
s
. Repeat step for opposite side
of vehicle.
19.Loosely install the front isolator bolts
d
as well as the
front drive mounting bracket fasteners
f
securing the
brackets to the chassis.
20.Torque front drive isolator bolts
g
to specification.
TORQUE
Front Drive Isolator Bolts:
55 ft-lbs (75 Nm) + 180°
