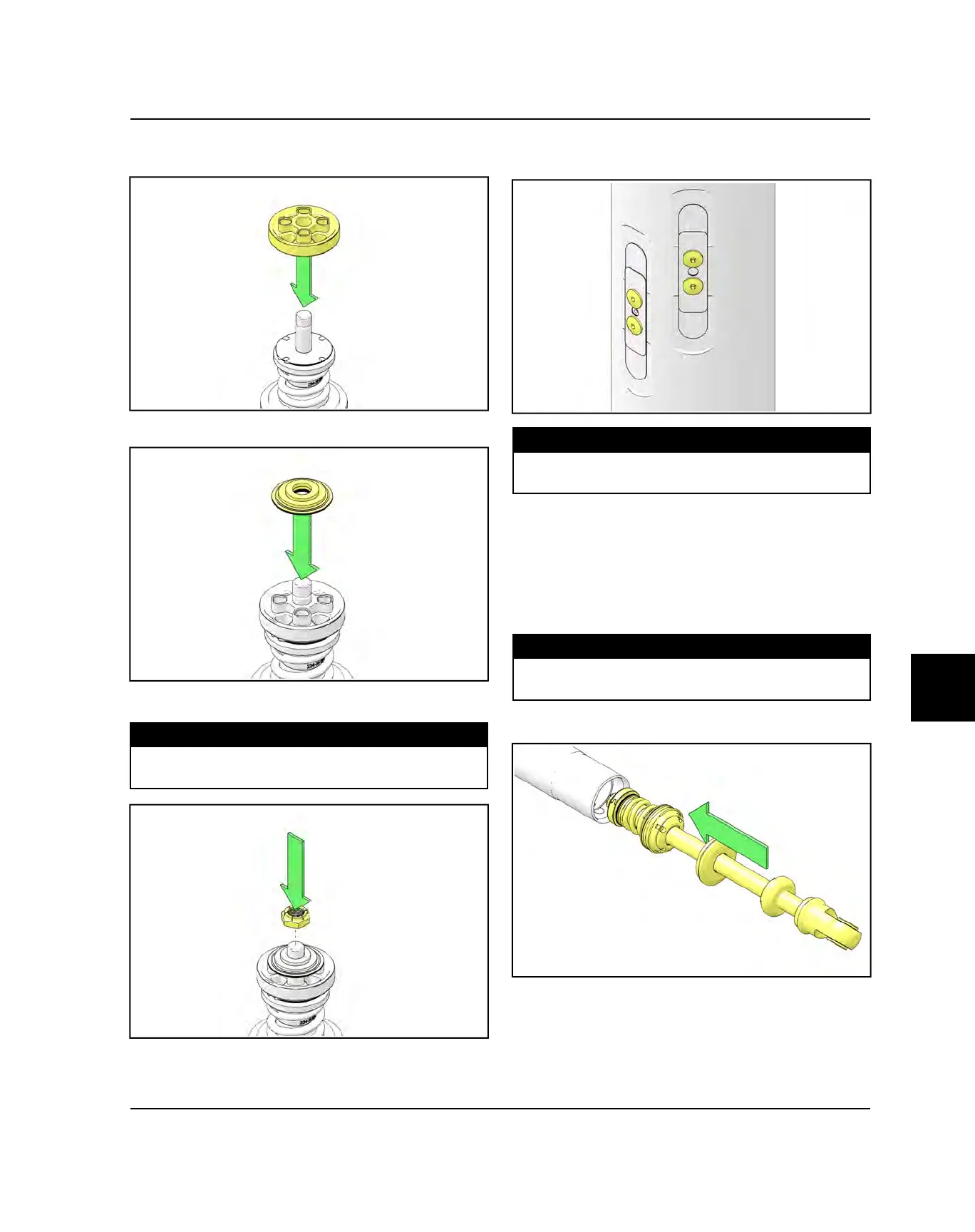

26.Install piston with compression port in-line with bleed
shim.
27.Install rebound valve stack.
28.Install shaft nut and torque to specification.
TORQUE
Shaft Nut:
22 ft-lb (30 Nm)
29.Install all Bypass check valves.
30.Use Loctite 242 (Blue) on bypass screws. Torque
bypass screws to specification.
TORQUE
Bypass Screw:
14 in-lb (2 Nm)
31.Install assembled internal body. Ensure that body is
seated properly in body cap.
32.Fill reservoir assembly with oil and install lubricated
IFP.
33.Ensuring oil level is above IFP, install bleed screw
with o-ring. Torque bleed screw to specification.
TORQUE
Bleed Screw:
14 in-lb (2 Nm)
34.Install shaft assembly into inner body.
STEERING / SUSPENSION
