Instrument Function

R&S

SMB100A

194Operating Manual 1407.0806.32 ─ 21

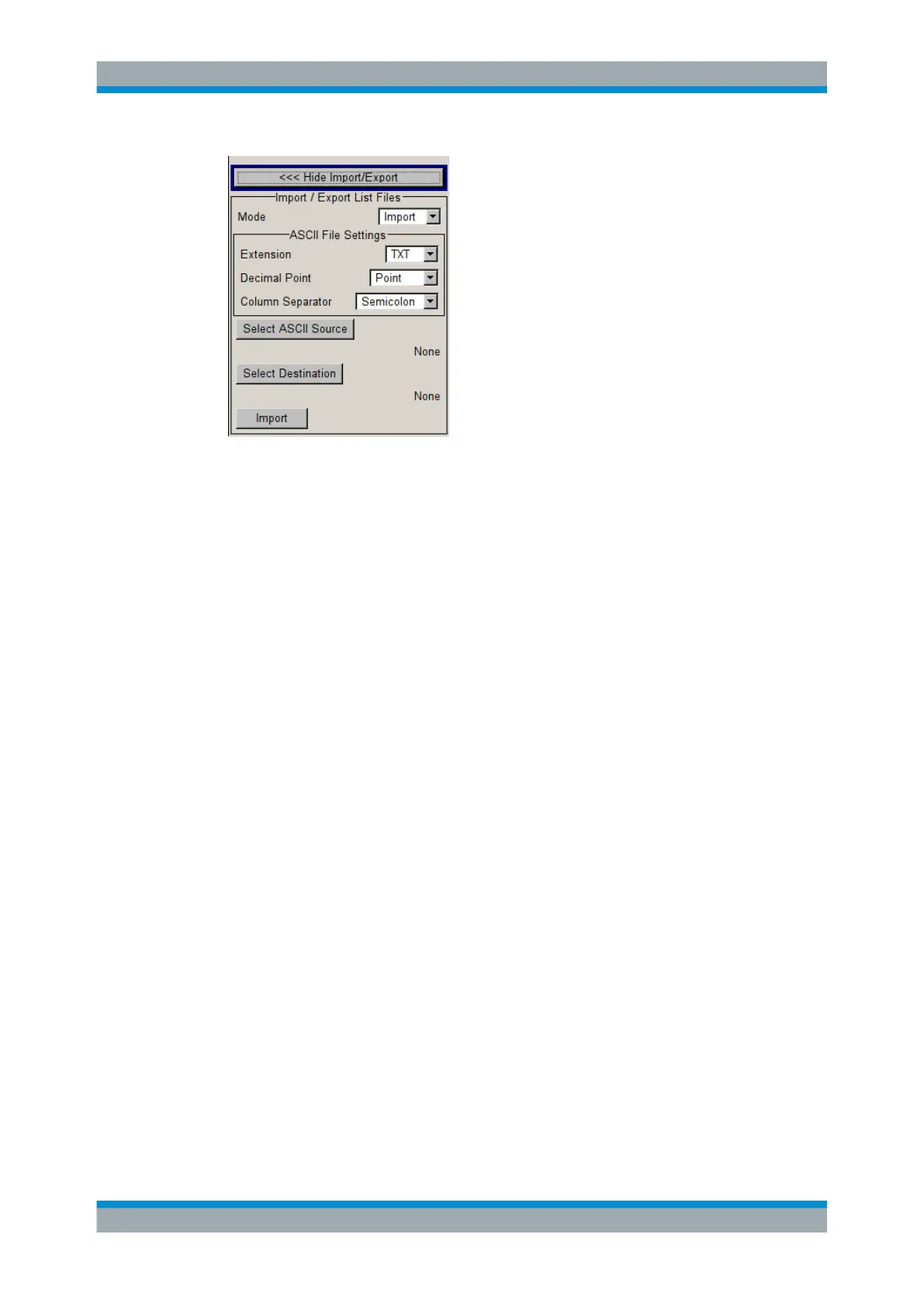

Externally edited Excel tables with frequency/level pairs can be imported as text or

CSV-files and used for list mode.

On the other hand, internally created list mode lists can be exported as text or CSV-

files.

Mode - List Mode

Selects if list mode lists should be imported or exported. The settings offered below

depend on the selected mode.

Remote command:

[:SOURce<hw>]:LIST:DEXChange:MODE on page 364

Extension - List Mode

Selects the file extension of the ASCII file to be imported or exported. Selection TXT

(text file) or CSV (Excel file) is available.

Remote command:

[:SOURce<hw>]:LIST:DEXChange:AFILe:EXTension on page 362

Decimal Point - List Mode

Selects the decimal separator used in the ASCII data between '.' (decimal point) and ','

(comma) with floating-point numerals.

Remote command:

[:SOURce<hw>]:LIST:DEXChange:AFILe:SEParator:DECimal on page 363

Column Separator- List Mode

Selects the separator between the frequency and level column of the ASCII table.

Remote command:

[:SOURce<hw>]:LIST:DEXChange:AFILe:SEParator:COLumn on page 363

Select ASCII Source / Destination - List Mode

Calls the "File Manager" for selecting the ASCII file to be imported into a list mode list

(source) or the ASCII file the list mode list is exported (destination) in.

Remote command:

[:SOURce<hw>]:LIST:DEXChange:AFILe:SELect on page 362

RF Block
