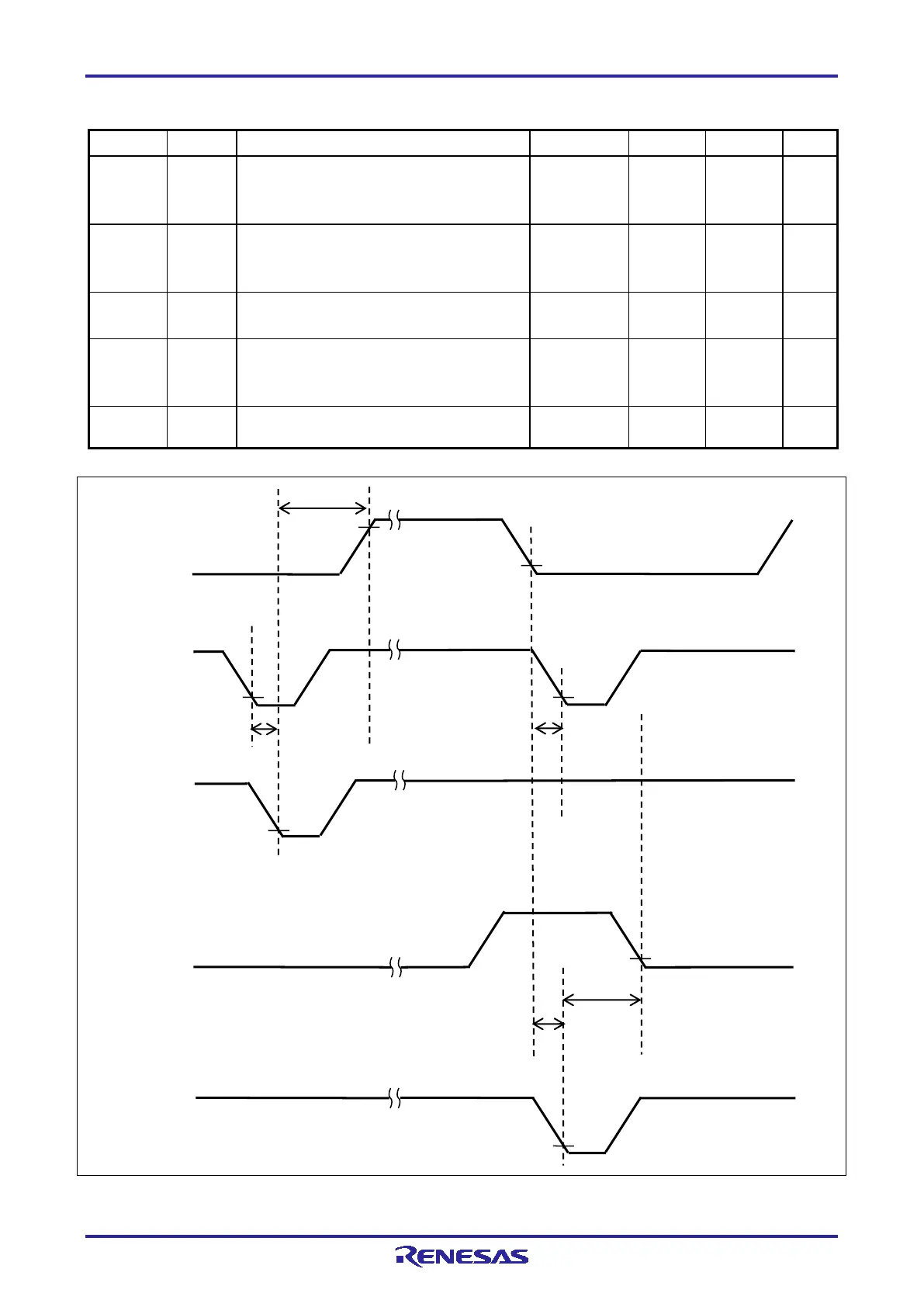

PG-FP6 V1.06 Appendix D. Electrical Specifications of the Remote Interface
R20UT4469EJ0800 Rev.8.00 Page 181 of 188
Oct.01.21
(2)
Pin name Symbol Parameter or Conditions MIN. TYP. MAX. Unit
t
PBAIN
Time from the fall of the BANK signal
until the VRF or START signal can be
input
1


ms
t
PINBU
Time from the fall of the VRF, START
or ENTER signal until the rise of the
BUSY signal


100
ms
t
PBUIN
Time from the fall of the BUSY signal
until the CLEAR signal can be input
5   ms
t
PCLPE
Time from the fall of the CLEAR signal
until the fall of the PASS or ERROR
signal
  50 ms
t
PPEBA
Time from the fall of the BUSY signal until the
BANK signal can be input
10


ms
BUSY
t PINBU
t PBAIN
BANK0
BANK1
BANK2
t PPEBA
ENTER
START
VRF
t PBUIN
t PCLPE
PASS
ERROR
CLEAR
