PG-FP6 V1.06 5. Usage in Standalone Mode
R20UT4469EJ0800 Rev.8.00 Page 74 of 188
Oct.01.21
Main menu
Submenu
ENTER button
CANCEL button
NEXT button
NEXT button
ENTER
button
Command
execution
Commands
Utility
Projects
>
>
>
Commands
Set LCD Contr. >
RS232C Baud rate
F/W Version
Projects
Utility

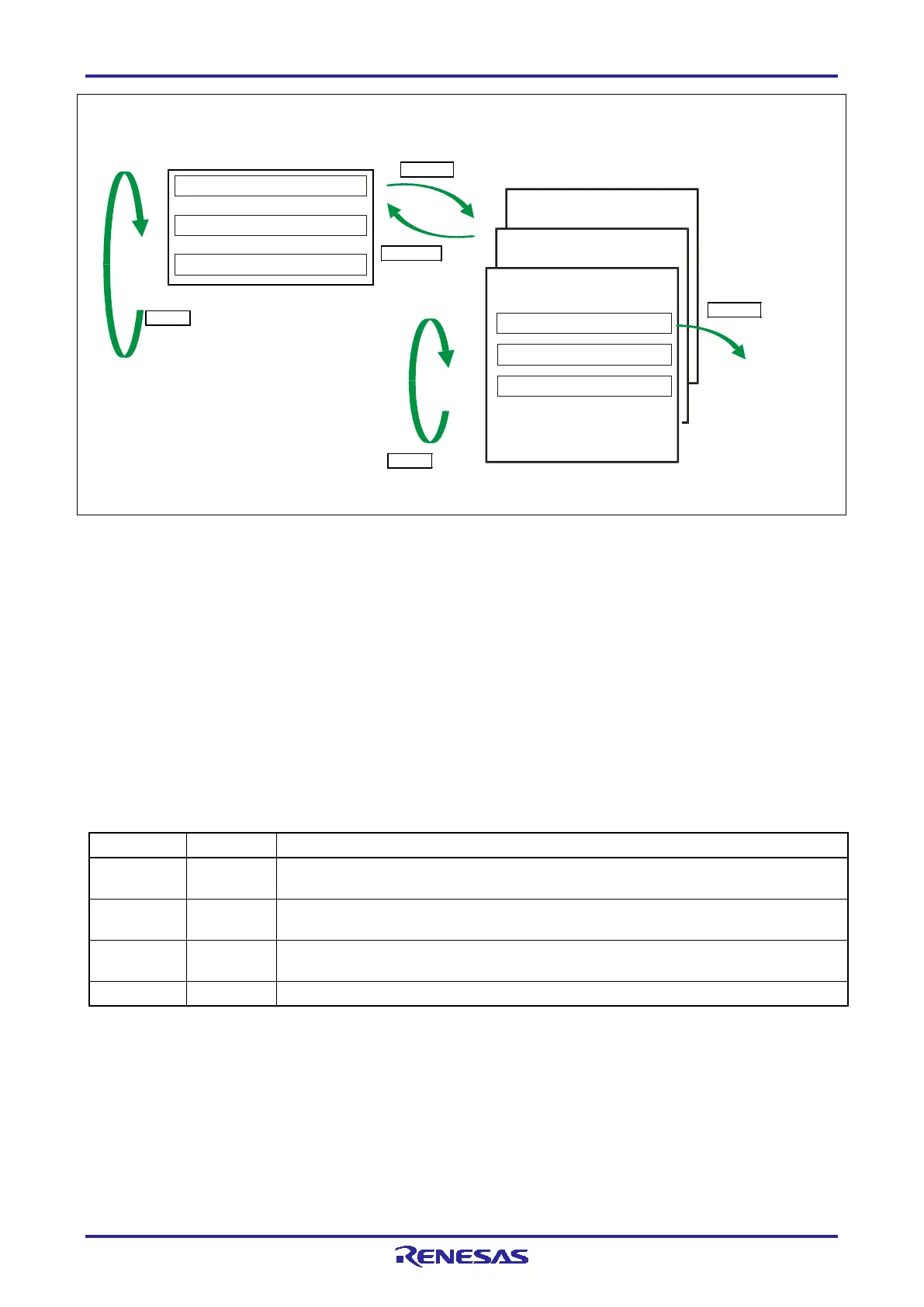

Figure 5.1 Transition of the States of Menus by Using Buttons
On the main menu level, the FP6 shows the selectable menu items. On the submenu level, the first line and
the second line in the message display show the menu item and the response from the FP6, if any,
respectively.
A command prompt ‘>’ displayed at the end of a menu line indicates that it is selectable with the [ENTER]
button, or that the menu (command) can be executed. If the command prompt ‘>’ is not displayed at the end
of a menu line, it means that the function is available only for display.
When power to the FP6 is turned on, ‘Commands >’ is displayed in the message display.
The status LEDs indicate the states of communications with the MCU and the result of execution, as shown
below.
Table 5.2 Status LEDs
Status LED
Color
State
PASS Blue
The selected command has been executed correctly.
The command that has been correctly executed is displayed in the message display.
BUSY Orange
The selected command is under execution.
The detailed execution state is displayed in the message display.
ERROR Red
The selected command has been executed incorrectly.
Details on errors are displayed in the message display.
VCC Green Power is being supplied to the user system.
Note: For details on errors displayed in the message display, refer to appendix A.2, Error Messages Produced by the
FP6 Main Unit.
