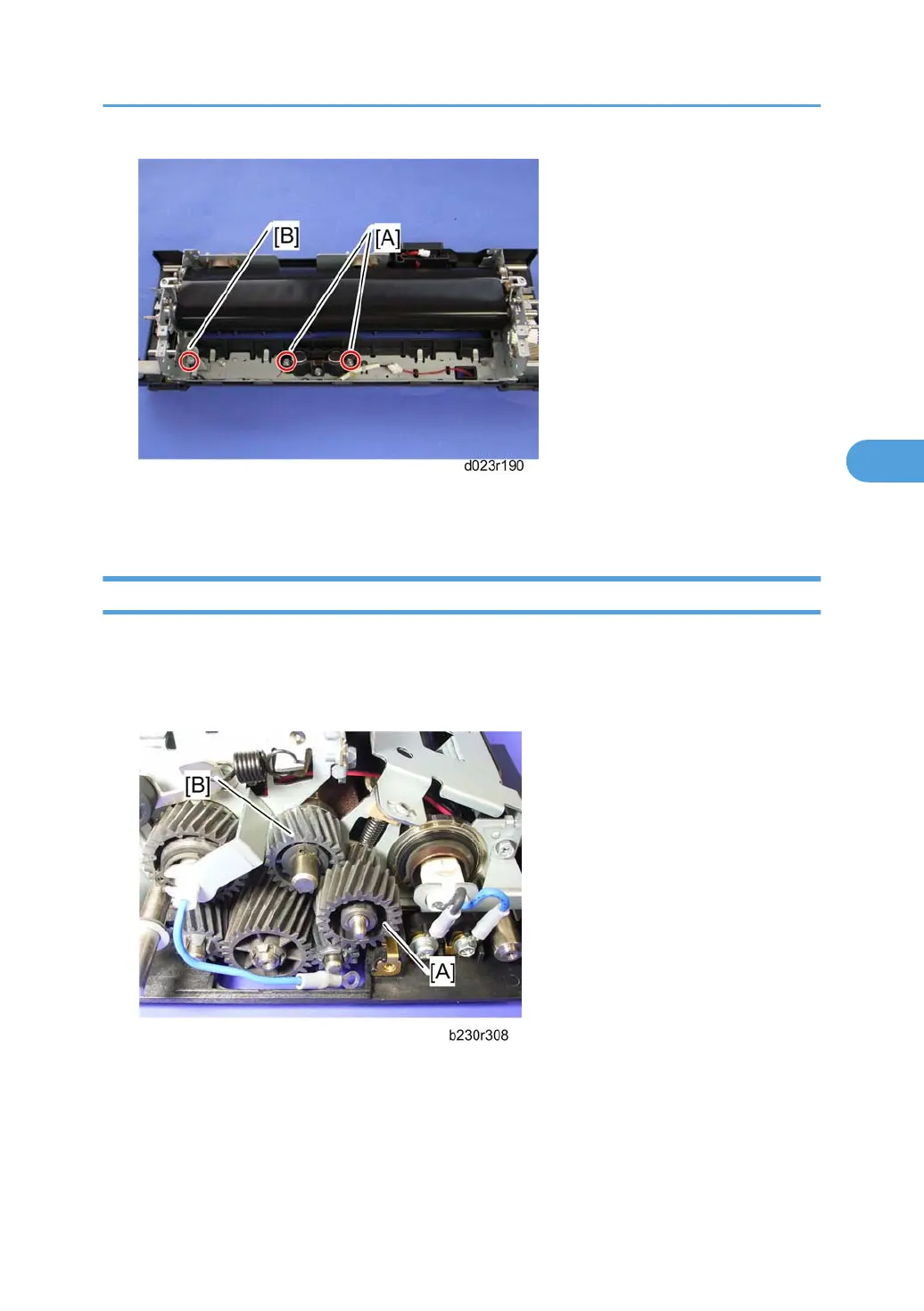

3. Pressure roller thermostats [A]( x 2)
4. Pressure roller thermistor [B] ( x 1,  x 1)
Fusing Gear and One-way Clutch
1. Fusing unit (* p.248)
2. Fusing upper cover (*p.249 "Pressure Roller Lamp")
3. Rear side stay (*p.251 "Fusing Lamp")
4. Release the idle gear [A]
5. Release the One-way clutch gear [B] (C-ring x 1)
Fusing
259
4
