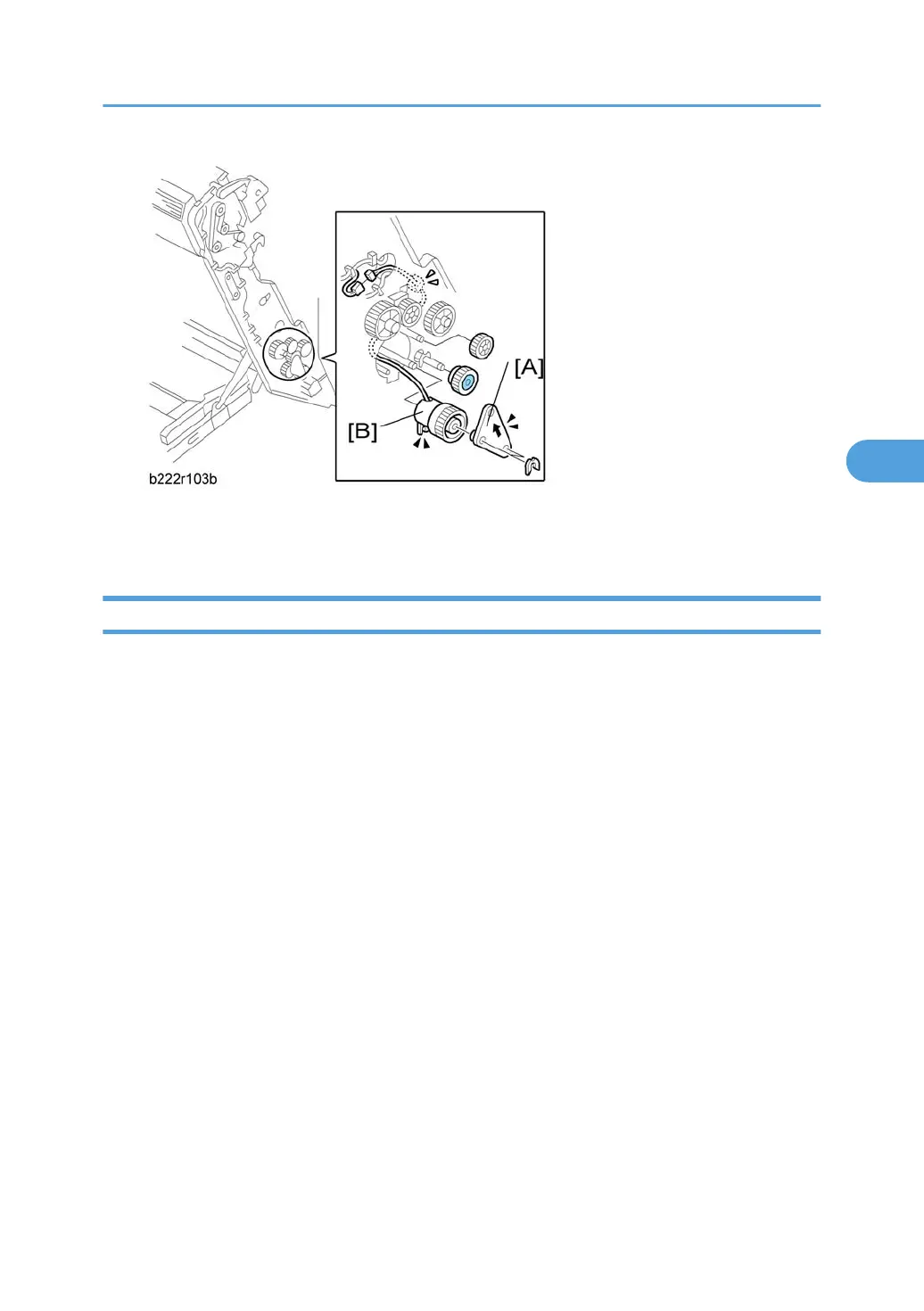

3. By-pass feed clutch holder [A] ( x 2)
4. By-pass feed clutch [B] ( x 1,  x 1)
Paper Exit Unit
1. Fusing Unit (*p.248 "Fusing Unit")
2. Front right cover (*p.171)
3. Image transfer belt unit (*p.213 "Image Transfer Belt Unit")
4. Inner Tray (*p.172 "Inner Tray")
5. Thermopile (*p.262 "Thermopile")
6. Rear cover (*p.169 "Rear Cover")
7. Right rear cover (*p.170 "Right Rear Cover")
8. Fusing duct (*p.261 "Fusing/Paper Exit Fan")
9. Open the controller box (*p.287 "Controller Box").
Paper Feed
275
4
