Thermopile

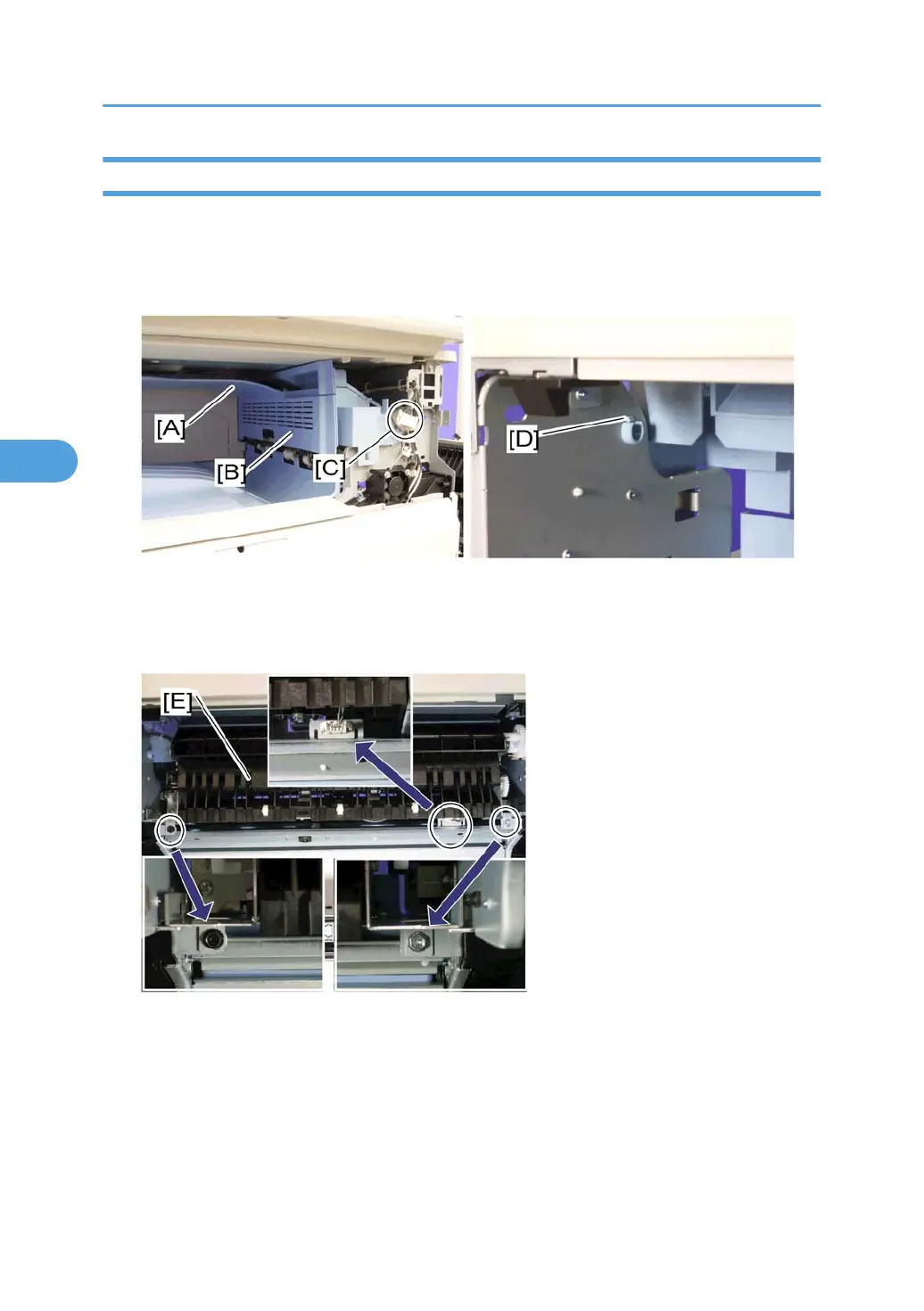

1. Open the right door.
2. Front right cover (*p.171 "Operation Panel")
3. Fusing unit (*p.248 "Fusing Unit")
4. Remove the inverter tray [A].
5. Release the hook [D] of the inner cover at the inside frame, and then remove the inner cover [B].
6. Disconnect the connector [C].
7. Paper exit unit [E] ( x 2,  x 1)
4. Replacement and Adjustment
262
4
