Ricoh MPC 2800 AT-C2 User Manual

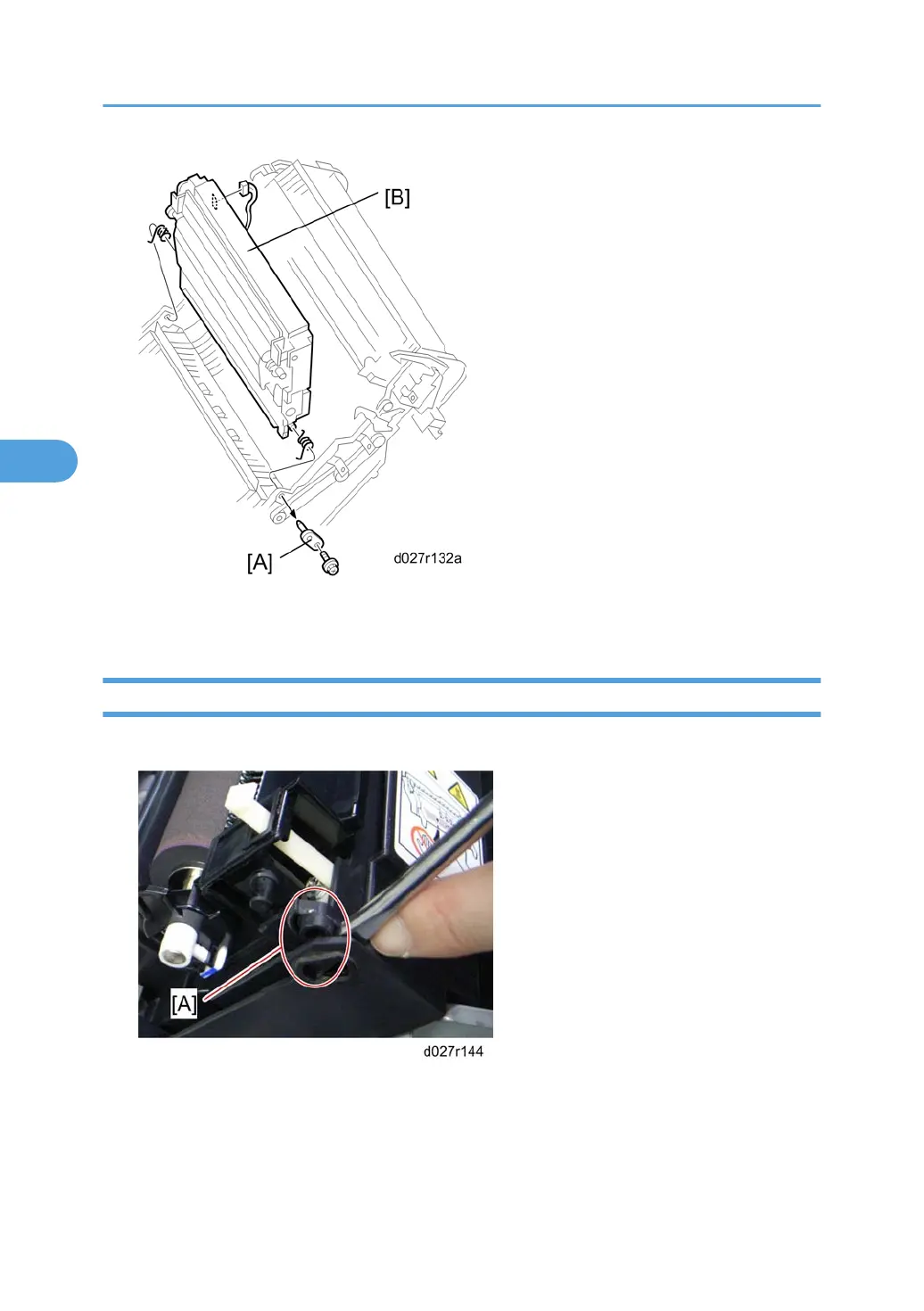

7. Pivot bracket [A] ( x 1)
8. Paper transfer unit [B] ( x 1, 2 springs)
High Voltage Supply Board - Discharge Plate
1. Open the right door.
2. Release the front [A] and rear pivots of the paper transfer roller case.
4. Replacement and Adjustment
222
4

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
