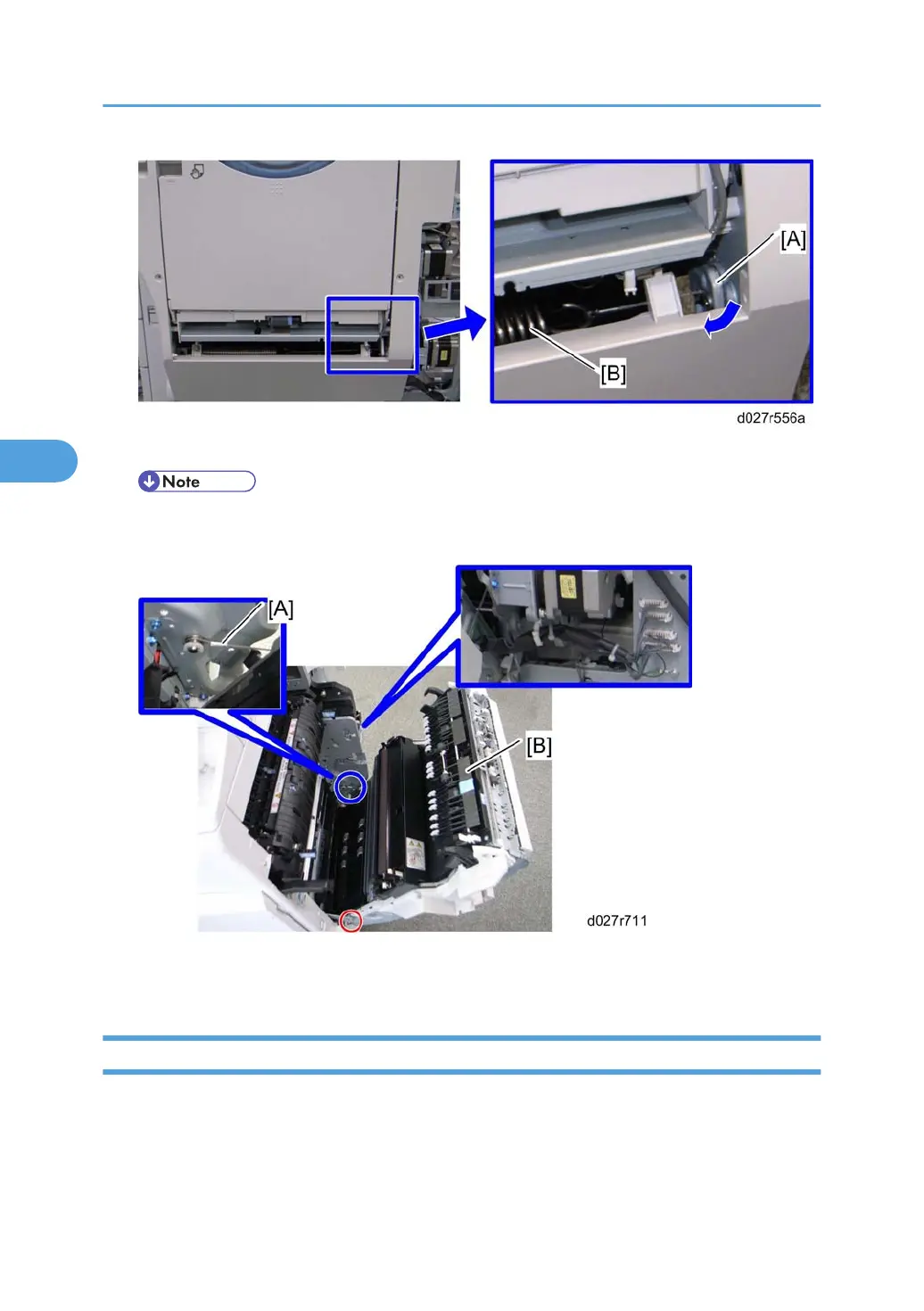

8. Push up the duplex unit a little bit, while pressing the bracket [A] to lock the spring [B].
• Do not let the duplex unit open fully before releasing the wire (step 9). Otherwise, the lock for
the spring [B] is released.
9. Wire [A] ( x 1)
10. Duplex unit [B] ( x 1, Stud screw x 1,  x 1,  x 4, ground cable x 1)
Duplex Door Sensor
1. Right door cover (* "p.279")
2. Open the right door.
4. Replacement and Adjustment
280
4
