Ricoh MPC 2800 AT-C2 User Manual

ITB Power Supply Board
1. Rear cover (*p.169 "Rear Cover")
2. Scanner rear cover (*p.176 "Exposure Lamp")
3. Open the controller box (*p.287 "Controller Box")

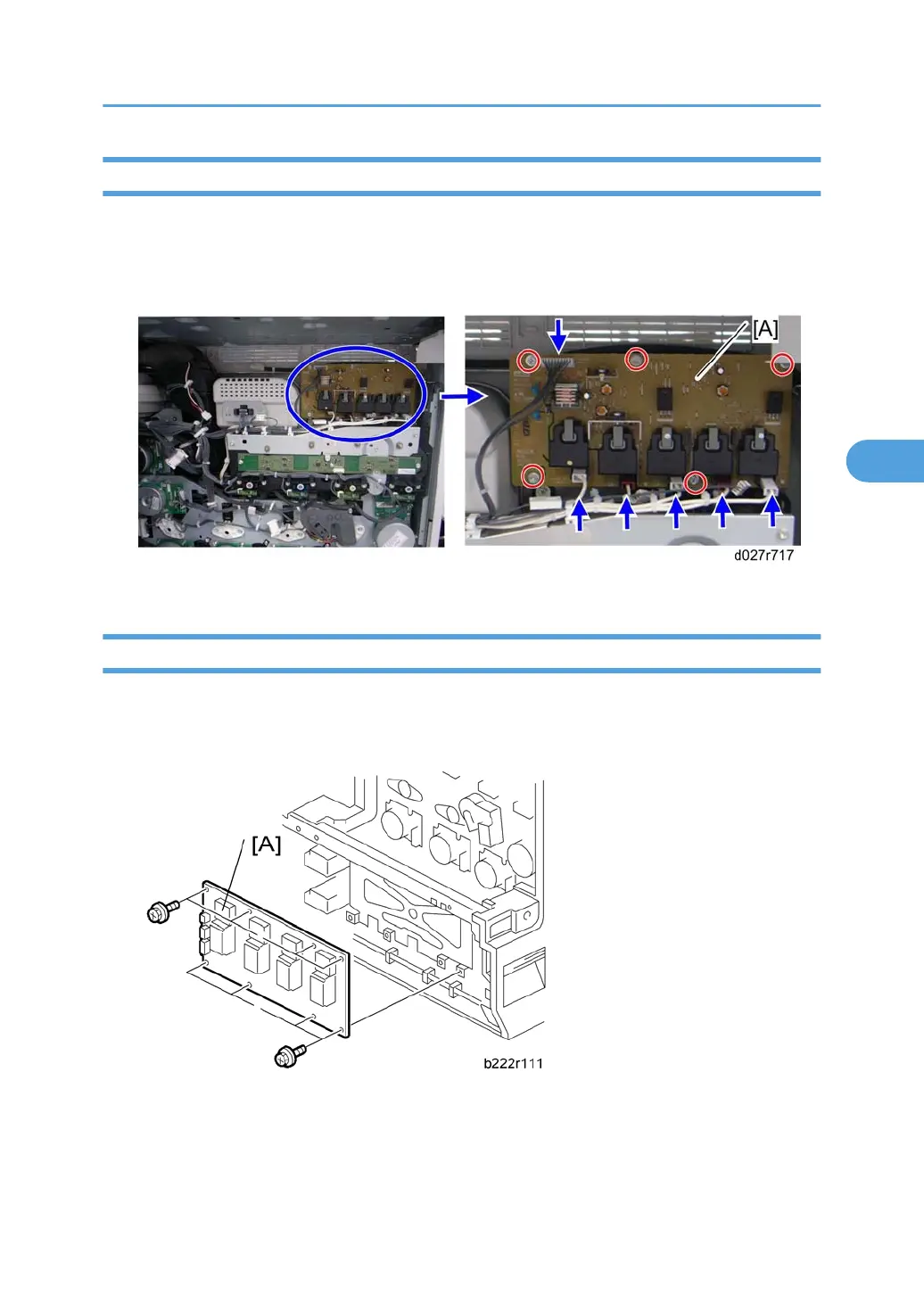

4. ITB power supply board [A] ( x 5,  x 6)
High Voltage Supply Board
1. Rear cover (*p.169 "Rear Cover")
2. PSU bracket (*p.292 "PSU")
3. High voltage supply board [A] ( x 8, All  s,  x 2)
