Image Transfer Belt
1. Image transfer belt cleaning unit (*p.214 "Image Transfer Belt Cleaning Unit")
2. Image transfer belt unit (*p.213 "Image Transfer Belt Unit")

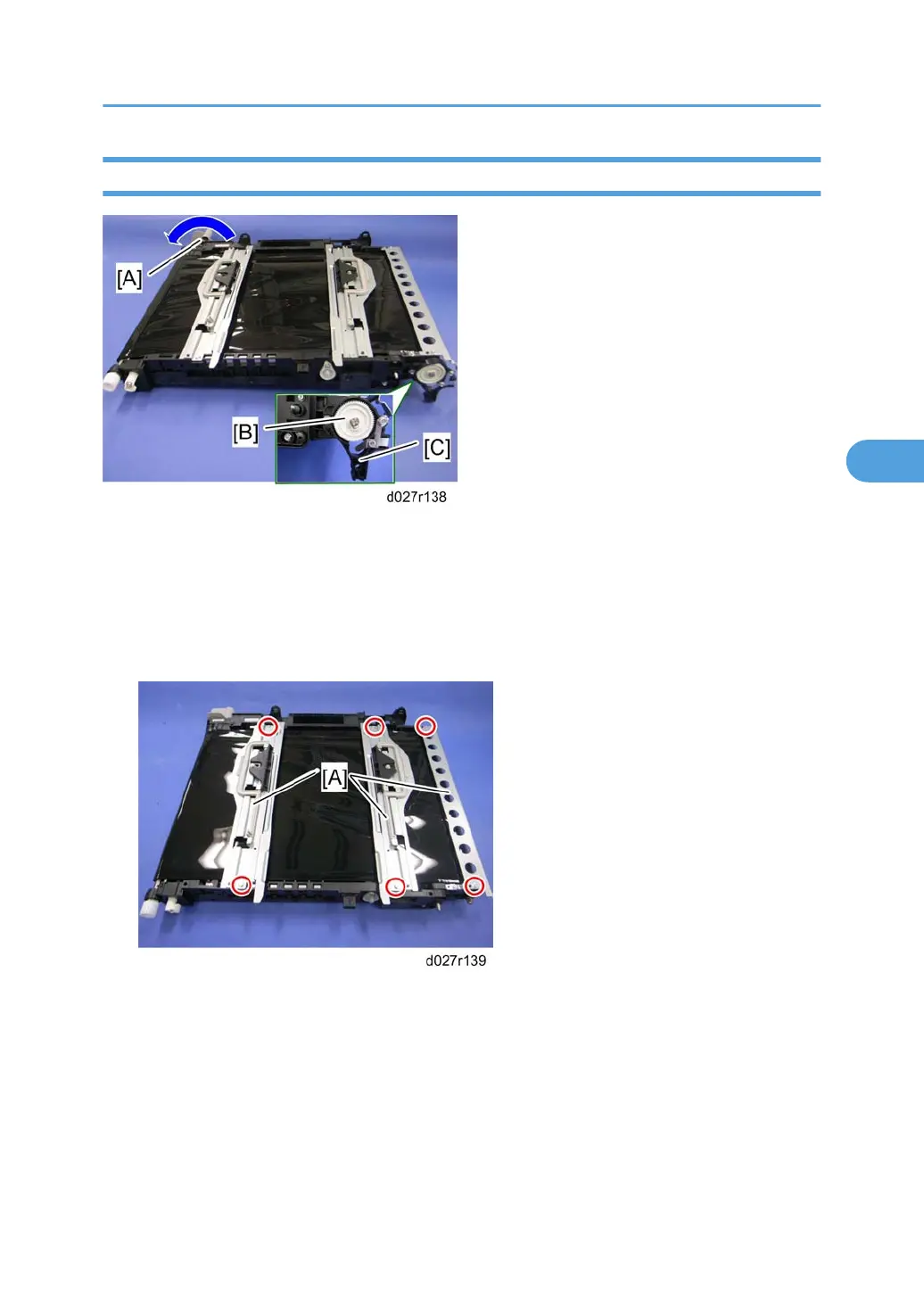

3. Turn the image transfer unit contact lover [A] counterclockwise (as seen from the rear).
4. Gear [B] (hook x 1)
5. Turn the gear cover [C] clockwise (as seen from the rear) ( x 1).
6. Three stays [A] ( x 6)
Image Transfer
215
4
