7.

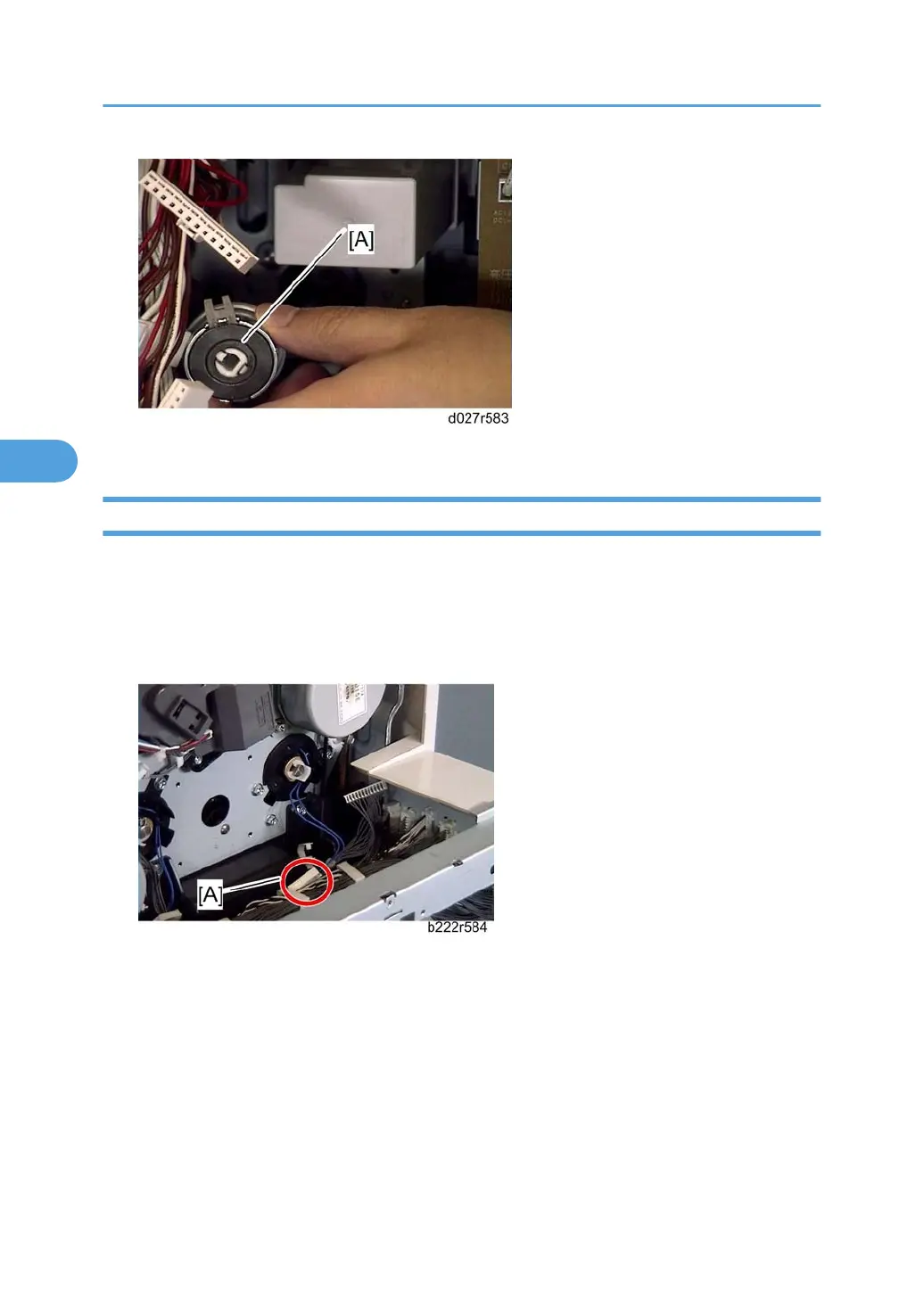

Paper feed clutch 2 [A]
Development Clutch-Y
1.
Rear cover (
*
"p.169")
2.
PSU bracket (
*
"p.292")
3.
Open the controller box. (
*
"p.287").
4.
Drum/development motor-Y (
*
"p.234")
5.
Disconnect the connector [A] (
x 1).
