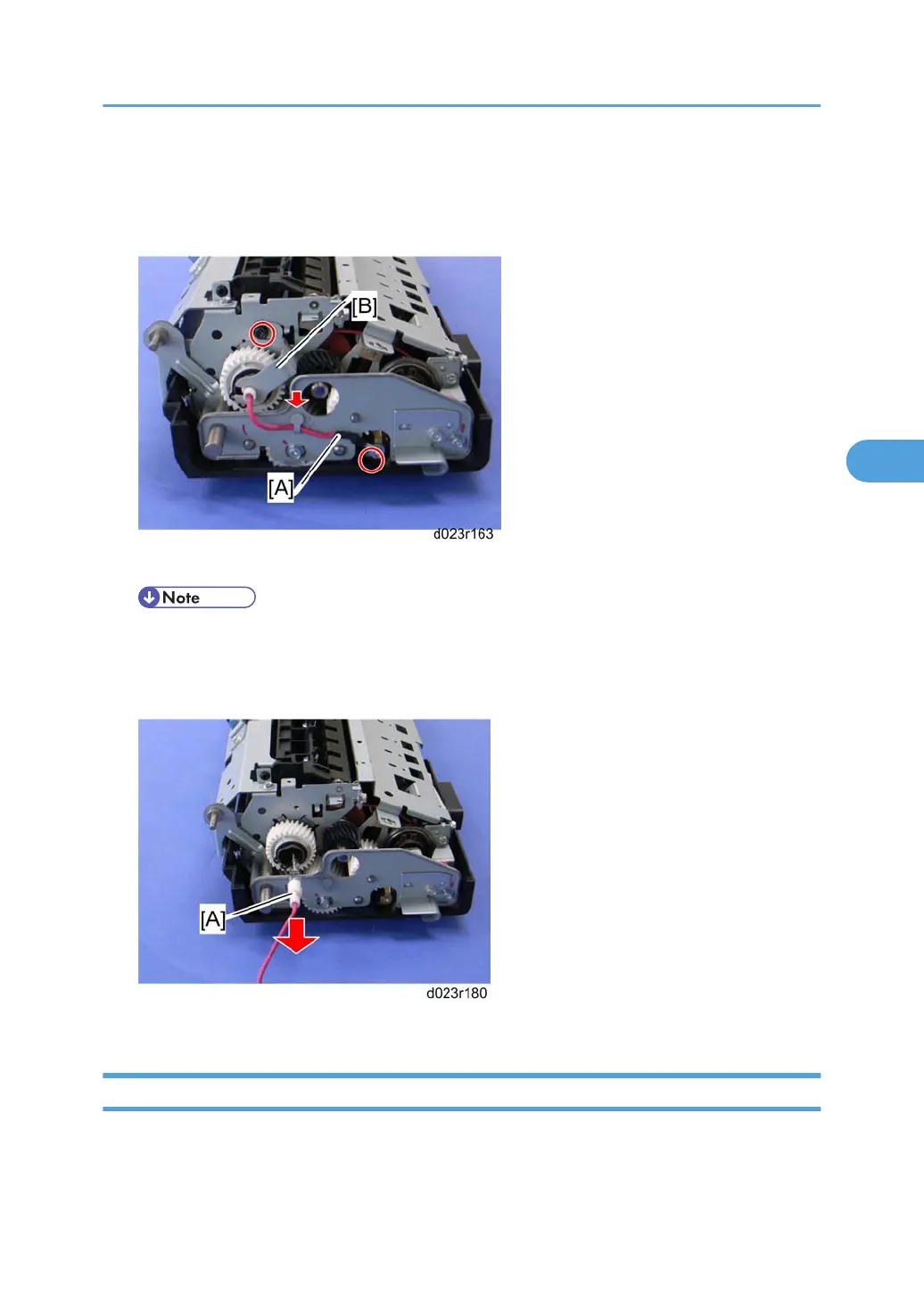

4. Front side stay [A] ( x 2)
5. Pressure roller lamp cable [B] ( x 1)
6. Front pressure roller lamp stay [C] ( x 1)
7. Release the pressure roller lamp cord [A] ( x 1).
• The color of the fusing lamp cord differs depending on the destination.
• Red: 220 - 240 V, Blue: 120 V
8. Rear pressure roller lamp stay [B] ( x 1)
9. Pressure roller lamp [A]
Fusing Lamp
1. Fusing unit (*p.248 "Fusing Unit")
2. Front side stay (*p.249 "Pressure Roller Lamp")
Fusing
251
4
