Ricoh MPC 2800 AT-C2 User Manual

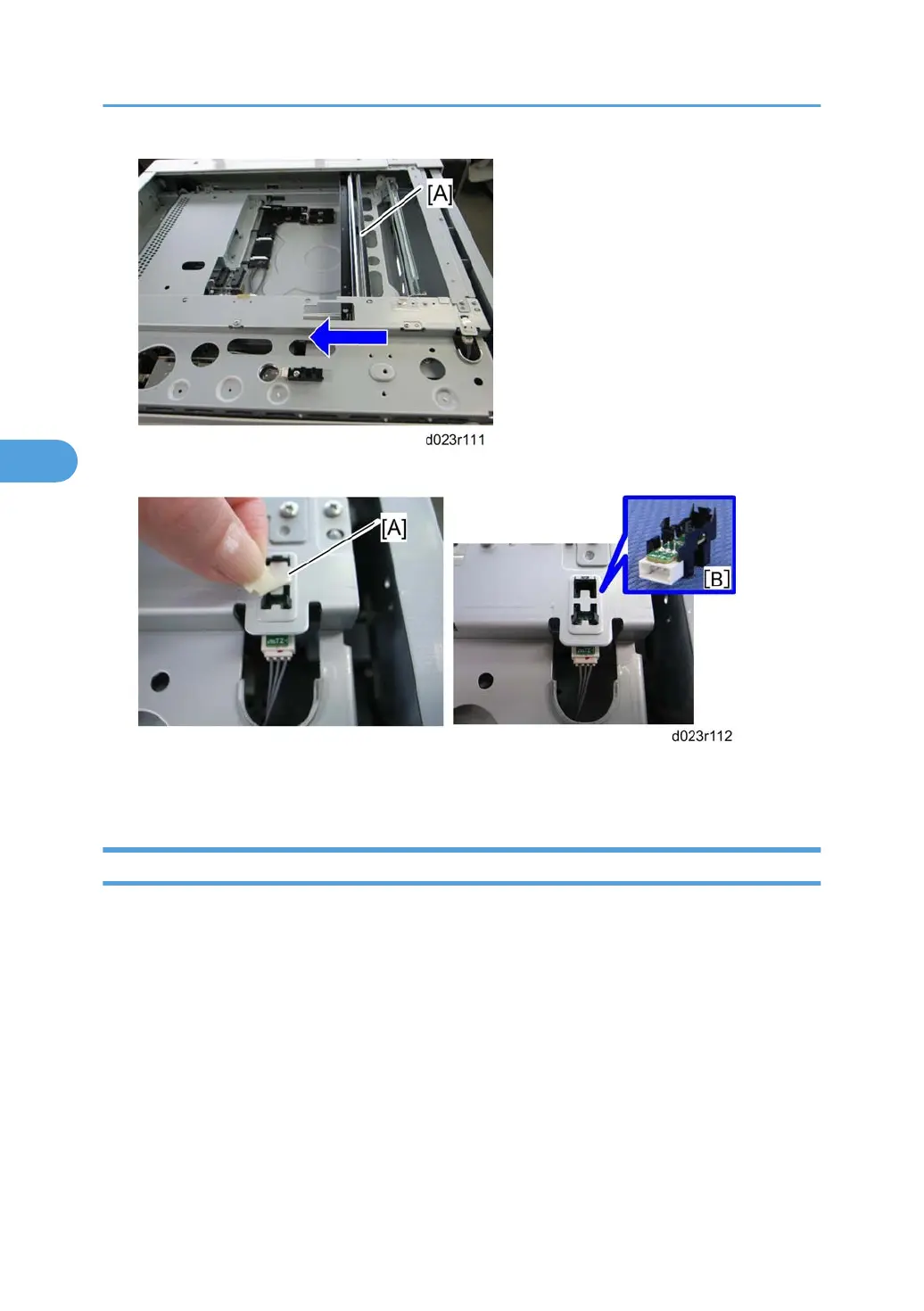

3. Move the 1st scanner carriage [A] to the right side.
4. Remove the mylar [A]
5. Remove the scanner HP sensor [B] ( x 1, three snaps)
Platen Cover Sensor
1. Scanner left cover and scanner rear cover (* p.176 "Exposure Lamp")
4. Replacement and Adjustment
182
4

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
