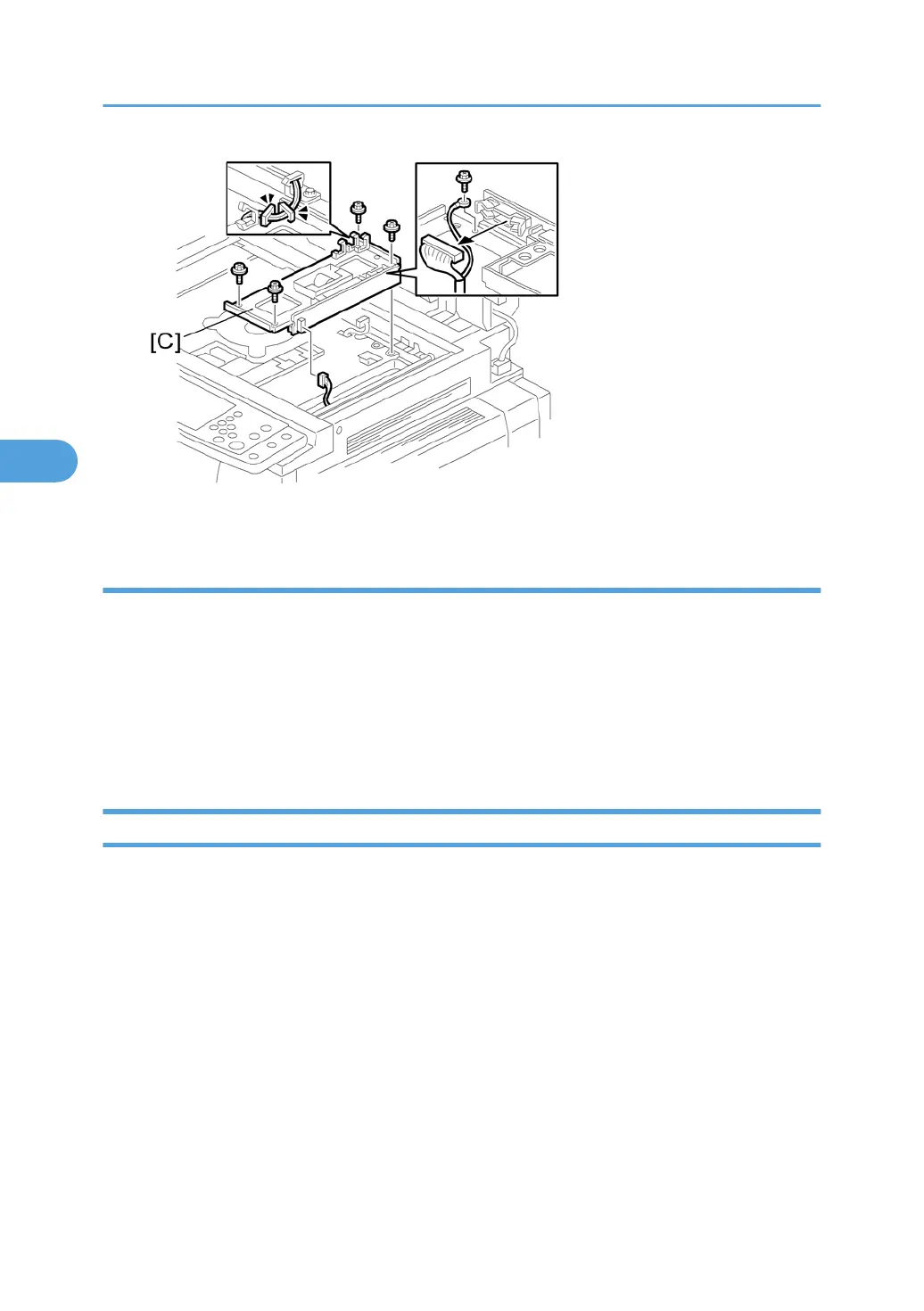

4. Sensor board unit [C] ( x 4, Grand screw x 1, x 2, x 2)
When reassembling
Adjust the following SP modes after you replace the sensor board unit:
• SP4–008 (Sub Scan Mag): See "Image Adjustment: Scanning".
• SP4–010 (Sub Mag Reg.): See "Image Adjustment: Scanning".
• SP4–011 (Main Scan Reg): See "Image Adjustment: Scanning".
• SP4–688 (DF: Density Adjustment): Use this to adjust the density level if the ID of outputs made in the
DF and Platen mode is different.
Exposure Lamp Stabilizer
1. Rear cover (* p.169 "Rear Cover")
4. Replacement and Adjustment
180
