Drive Unit

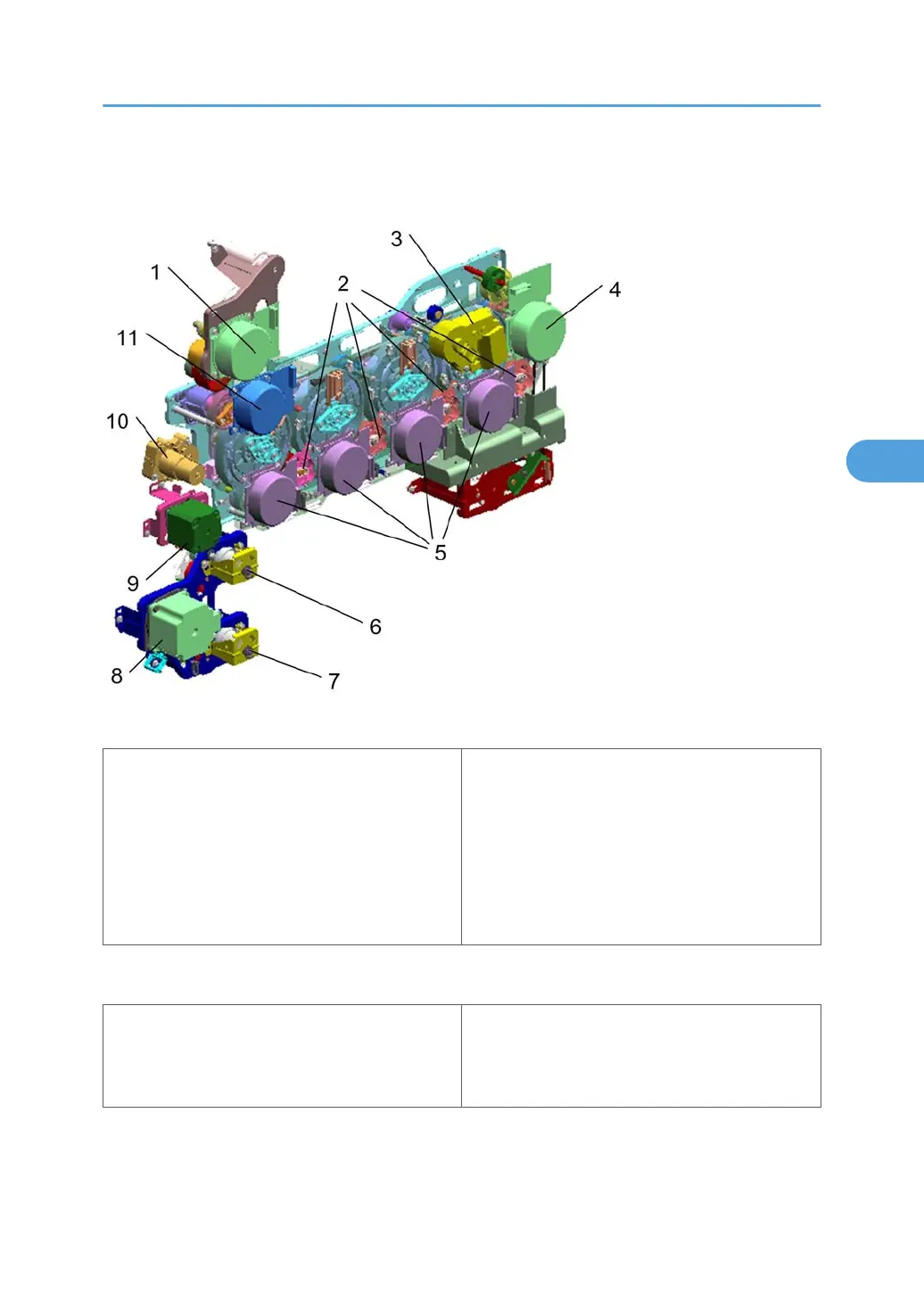

The drawing above shows the drive unit layout.
1. Fusing/paper exit motor
2. Development clutches
3. Image transfer belt contact motor
4. Toner transport motor
5. Drum/Development drive motors
6. Paper feed clutch – Tray 1
7. Paper feed clutch – Tray 2
8. Paper feed motor
9. Registration motor
10. Paper transfer contact motor
11. ITB drive motor
There are some motors and clutches that are not shown in the above drawing:
• Tray lift motor 1 and 2
• Duplex inverter motor
• Duplex/By-pass Motor
• Junction gate 1 motor
• Shutter motor
• By-pass clutch
Drive Unit
227
