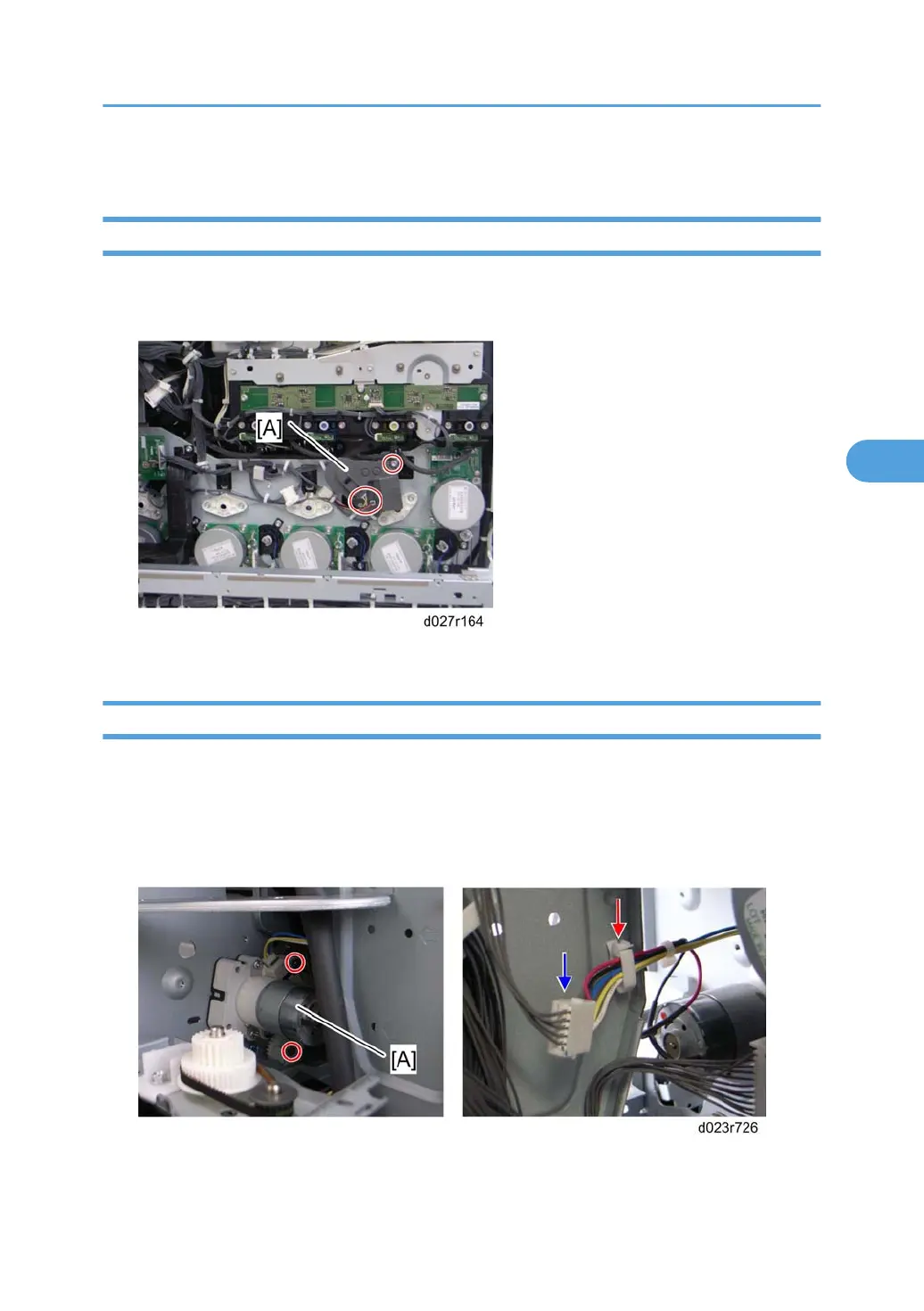

3. Fusing/paper exit motor [A] ( x 3,  x 1)
Image Transfer Belt Contact Motor
1. Rear cover (* "p.169")
2. Open the controller box. (* "p.287")
3. Transfer belt contact motor [A] ( x 2,  x 2)
Paper Transfer Contact Motor
1. Rear cover (* "p.169")
2. Right rear cover (* "p.170")
3. Open the controller box (* “p.287”)
4. Duplex/by-pass motor bracket (* “p.240”)
5. Paper transfer contact motor [A] ( x 2,  x 1,  x 1)
Drive Unit
237
4
