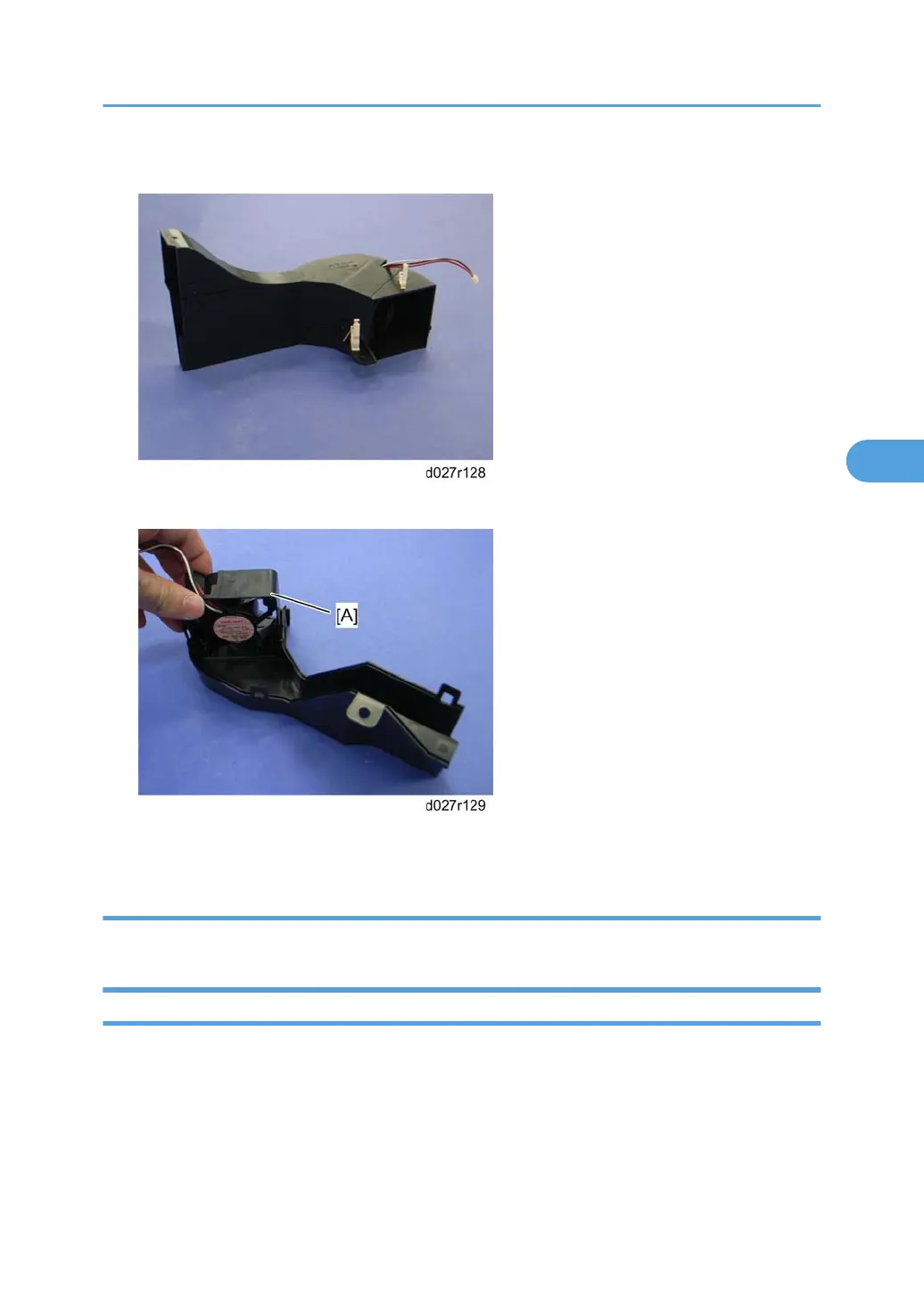

4. Second duct [A] ( x 2, x 1, x 2)
5. Split the second duct (4 hooks).
6. Second duct fan [A]
When reinstalling the second duct fan
Make sure that the second duct fan is installed with its decal facing to the front of the machine.
Third Duct Fan
1. Rear cover (*p.169 "Rear Cover")
2. Right rear cover (*p.170 "Right Rear Cover")
3. Controller box (*p.287 "Controller Box")
Image Creation
205
4
