Anti-Condensation Heater (Scanner)
Installation Procedure

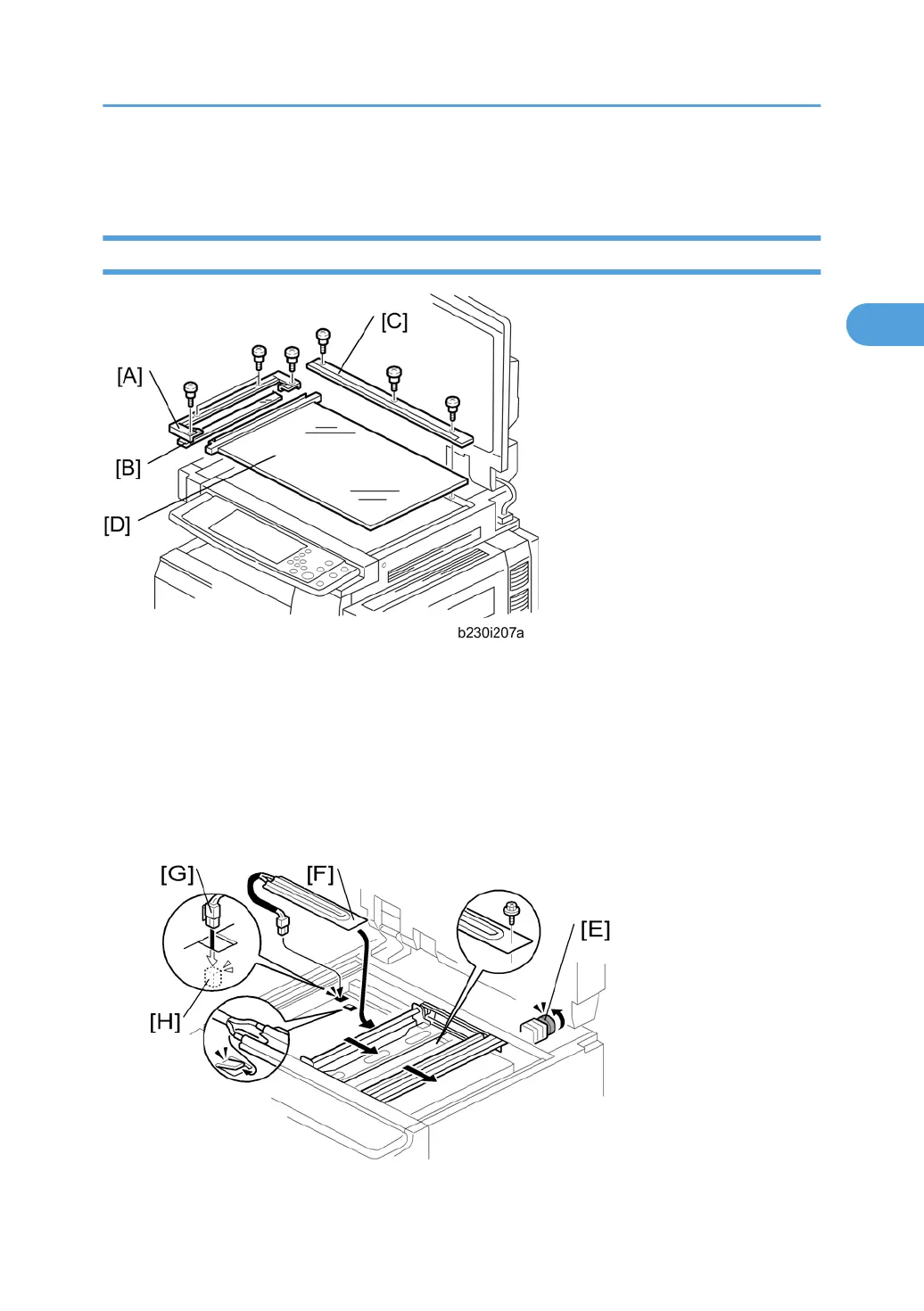

1. Rear cover (see "Rear Cover" in the "Replacement and Adjustment" section)
2. Open the ARDF or platen cover.
3. Glass cover [A] ( x 4)
4. ARDF exposure glass [B]
5. Rear scale [C] ( x 3)
6. Exposure glass with left scale [D]
Anti-Condensation Heater (Scanner)
111
2
