Mechanical Counter (NA Only)
Installation Procedure
1. Rear cover (see "Rear Cover" in the "Replacement and Adjustment" section)
2. Right rear cover (see "Right Rear Cover" in the "Replacement and Adjustment" section)

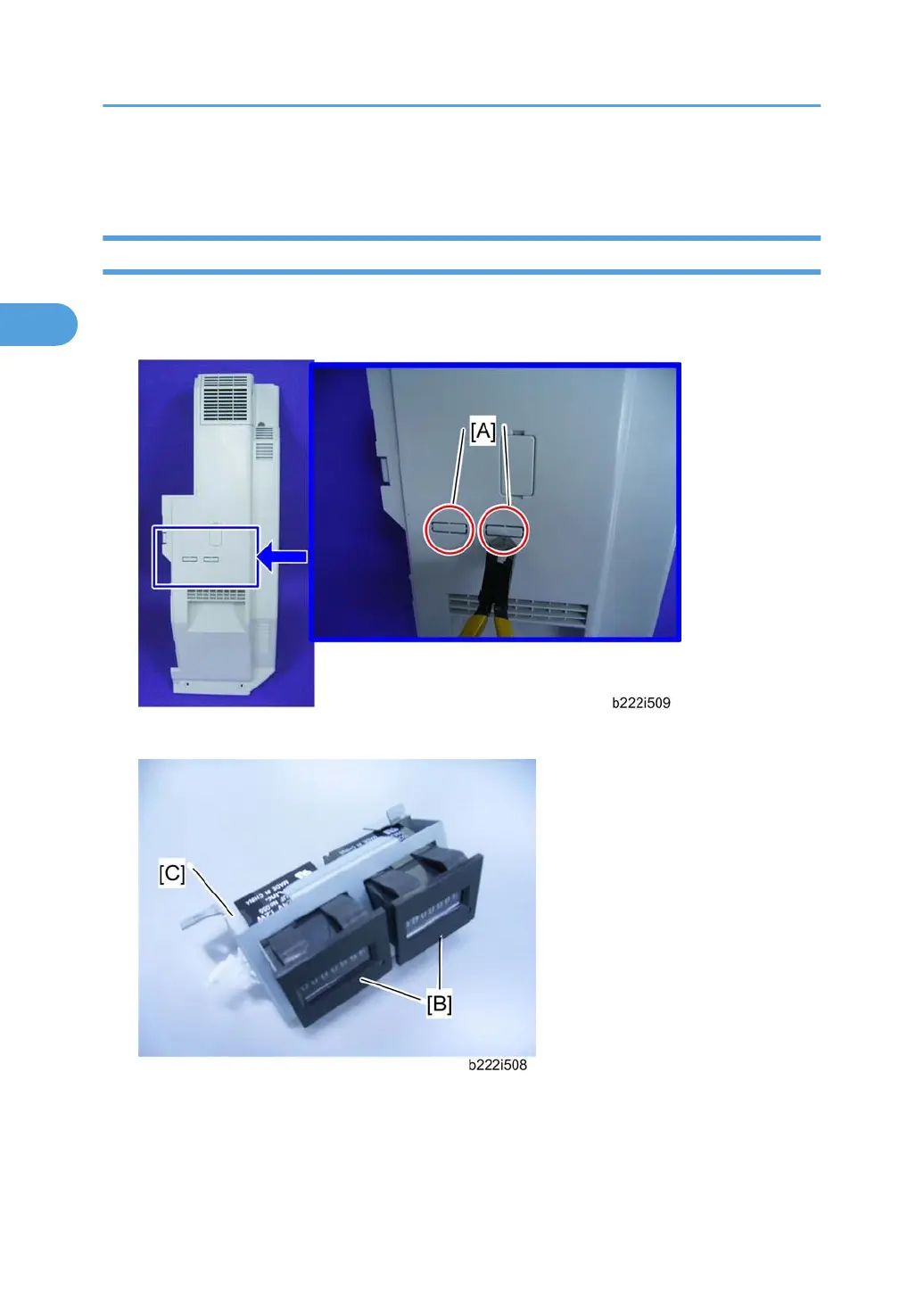

3. Remove the cutouts [A] in the right rear cover with nippers.
4. Attach the mechanical counters [B] to the bracket [C] and connect the harness to each mechanical
counter.
