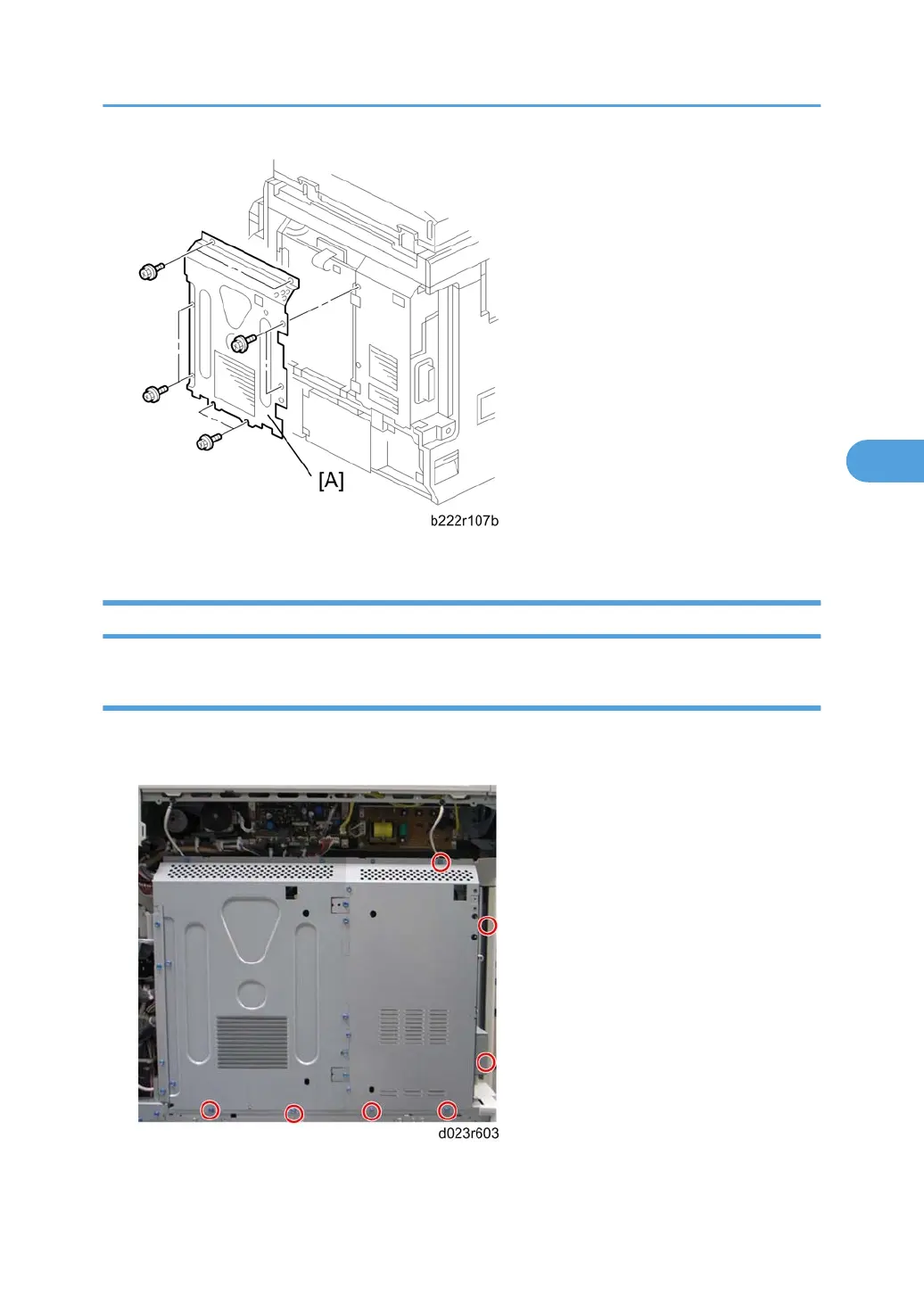

3. Controller box right cover [A] ( x 8)
Controller Box
When opening the controller box
1. Rear cover (*p.169 "Rear Cover")
2. Scanner rear cover (*p.176 "Exposure Lamp")
3. Remove seven screws.
Electrical Components
287
4
