Ricoh MPC 2800 AT-C2 User Manual

Tray Heater
Installation Procedure

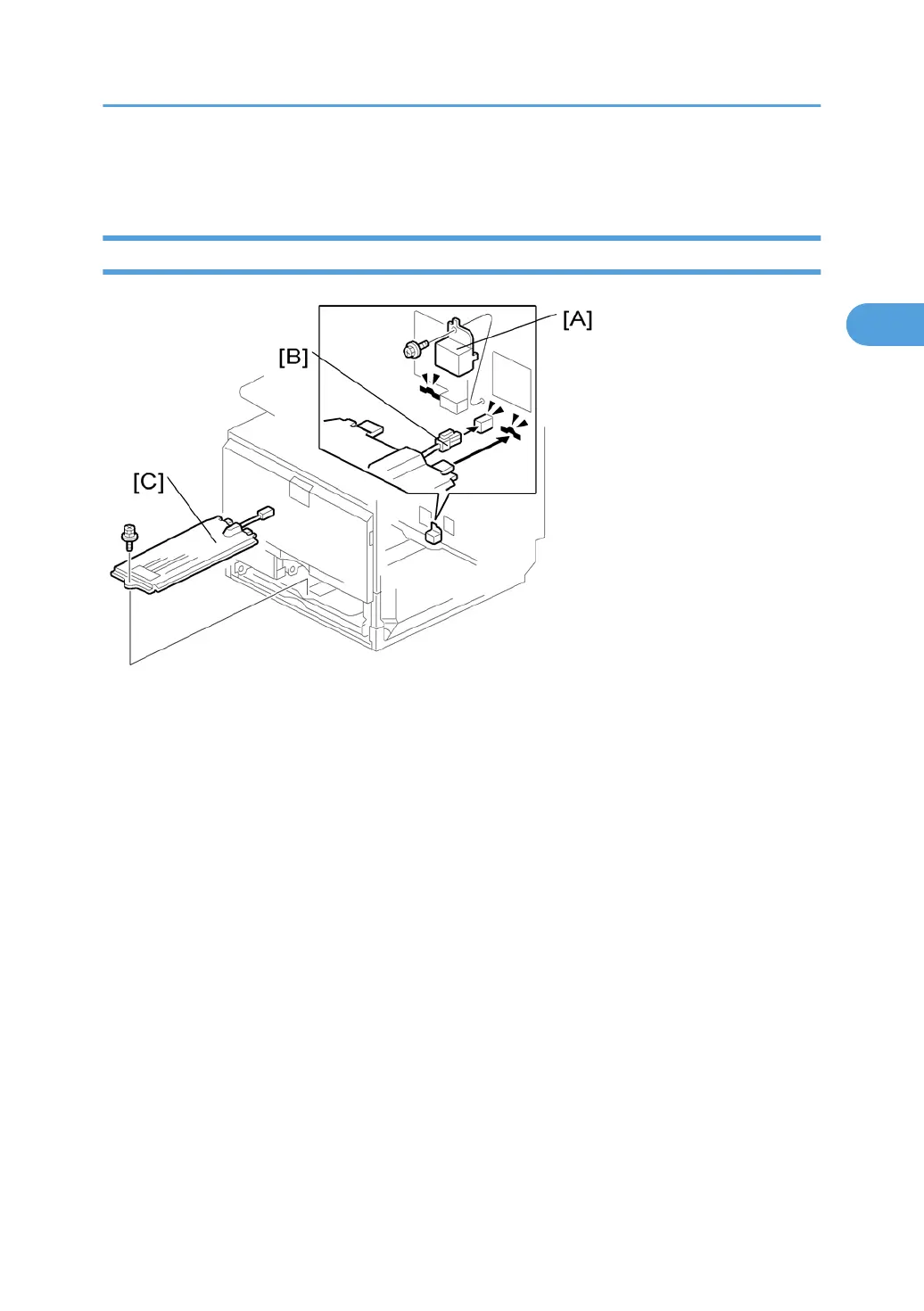

1. Remove trays 1 and 2 from the machine.
2. Remove the connector cover [A] ( x 1).
3. Connect the connector [B] of the heater to the connector of the main machine.
4. Install the heater [C] inside the machine ( x 1)
5. Reassemble the machine.
Tray Heater
113
2
