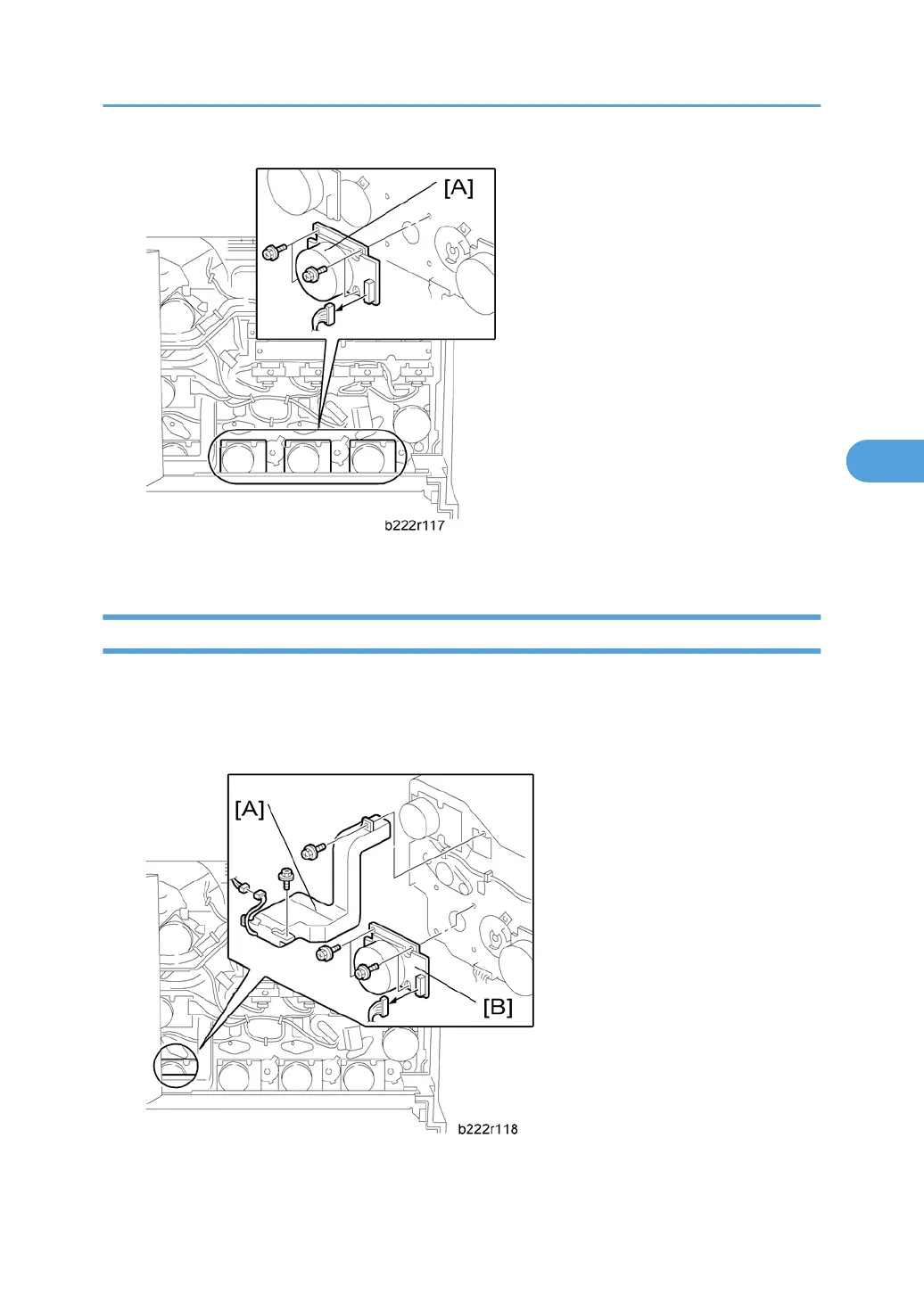

4.
Drum/Development motors (three motors, one each for MCY) [A] (
x 4,
x 1 each)
Drum/Development Motor-K
1.
Rear cover (
*
"p.169")
2.
PSU bracket (
*
"p.292")
3.
Open the controller box (
*
"p.287")
4.
Third duct [A] (
x 2,
x 1)
Drive Unit
235
4
236
238
