Image Transfer
Image Transfer Belt Unit
1. Open the right door.
2. Open the front door.
3. Open the drum positioning plate. (*p.198 "PCU")

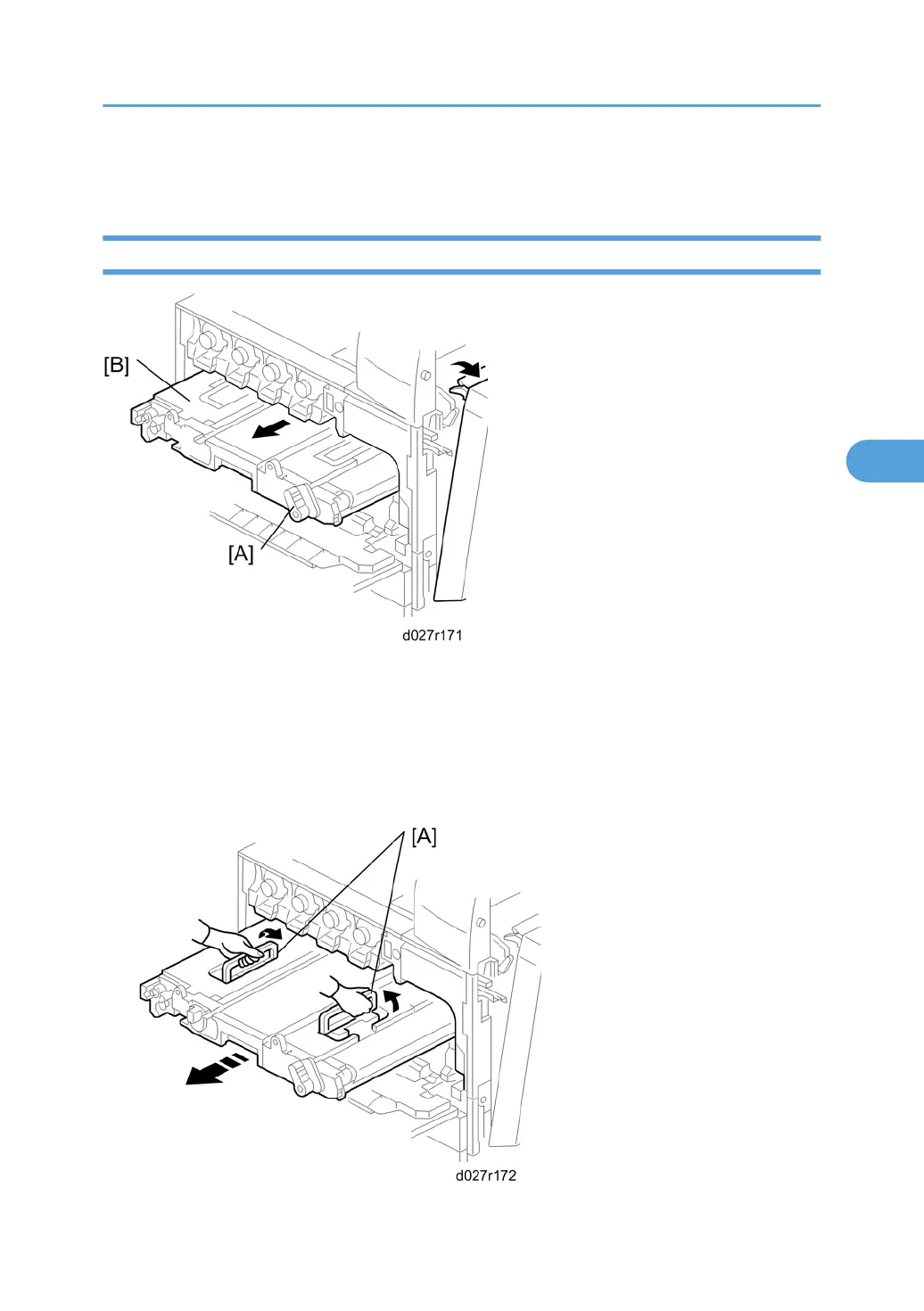

4. Turn the image transfer belt unit lock lever [A] counterclockwise.
5. Pull out the image transfer belt unit [B] halfway.
Image Transfer
213
4
