Ricoh MPC 2800 AT-C2 User Manual

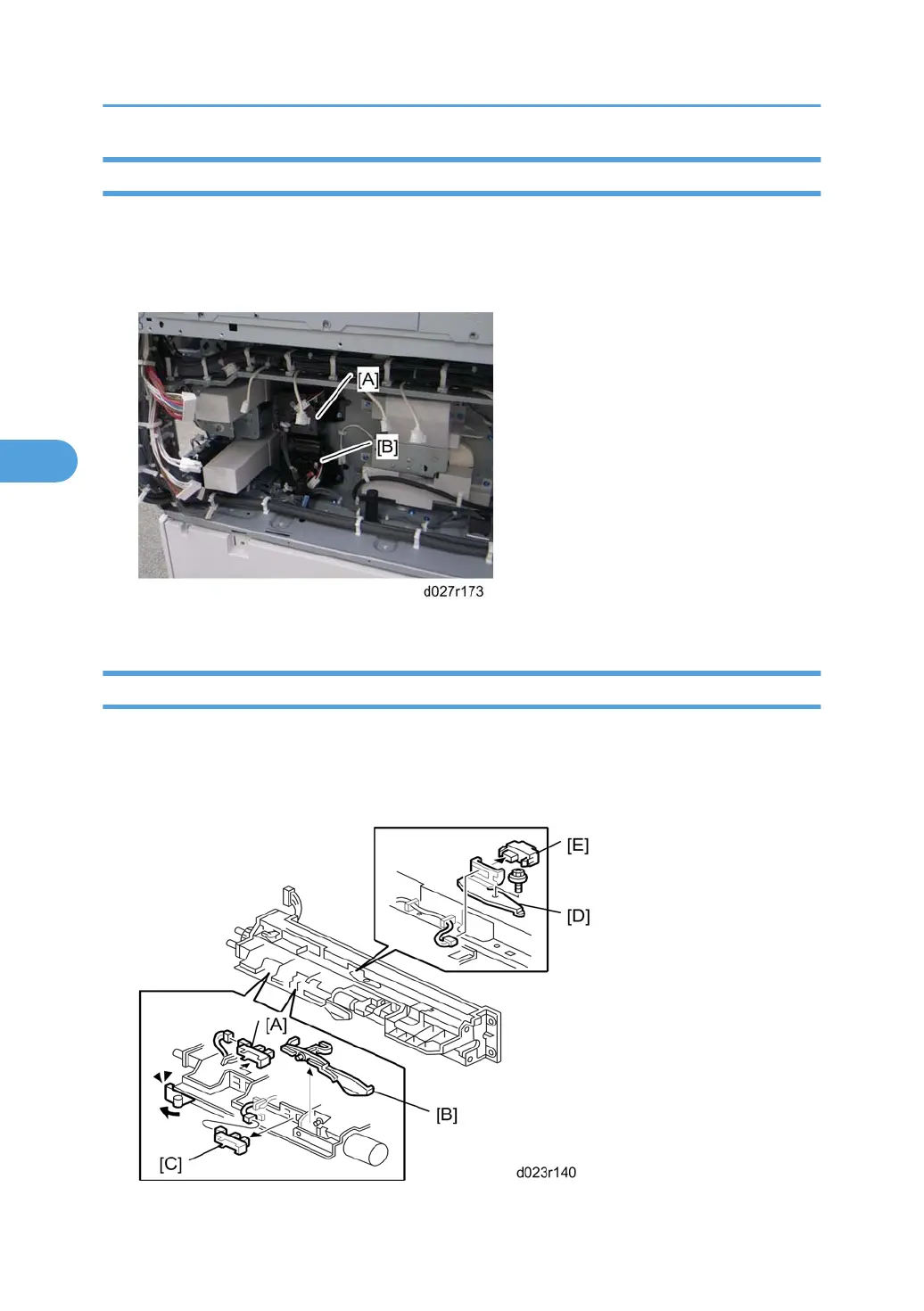

Tray Lift Motor
1. Rear cover (*p.169 "Rear Cover")
2. PSU bracket (*p.292)
3. High voltage supply board bracket (*p.294 "High Voltage Supply Board Bracket")
4. Tray lift motor 1 [A] or 2 [B] ( x 2,  x 3,  x 1 each)
Vertical Transport, Paper Overflow and Paper End Sensor
1. Rear cover (*p.169 "Rear Cover")
2. Right rear cover (*p.170 "Right Rear Cover")
3. Paper feed unit (*p.264 "Paper Feed Unit")
4. Replacement and Adjustment
266
4
