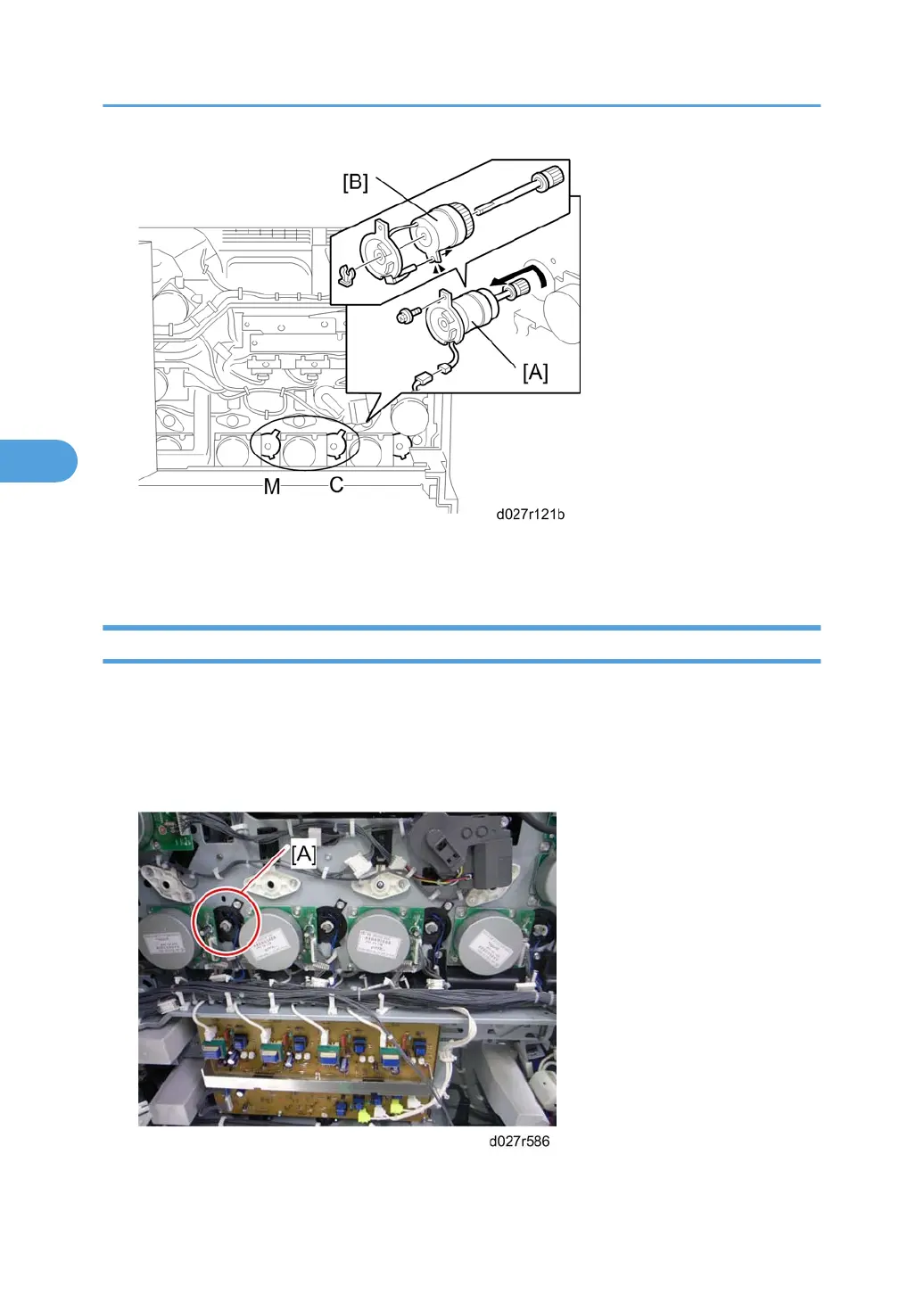

6. Turn the development clutch unit [A] counter-clockwise and then pull it out ( x 1).
7. Development clutches for M and C [B] ( x 1)
Development Clutch-K
1. Rear cover (* "p.169")
2. PSU bracket (* "p.292")
3. Open the controller box. (* "p.287")
4. Drum/development motor-K (* "p.235")
5. Turn the development clutch unit [A] counter-clockwise and then pull it out ( x 1).
4. Replacement and Adjustment
246
4
