Ricoh MPC 2800 AT-C2 User Manual

• Be careful when you lift the edge of the holder, because the holder is easily broken.

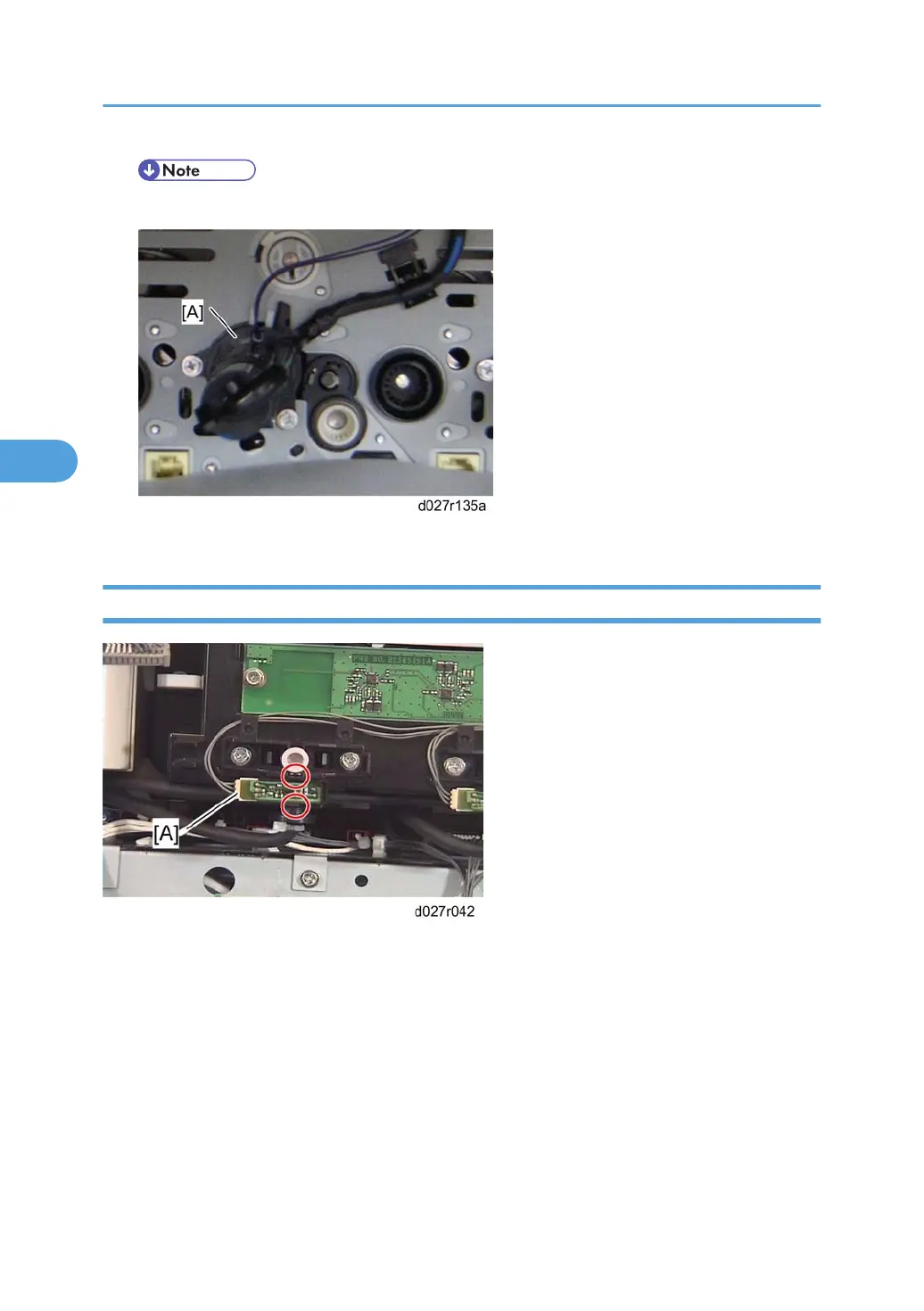

8. Insert the toner pump unit [A] into the rear frame of the machine ( x 2).
Toner End Sensor
1. Rear cover (*p.169 "Rear Cover")
2. Open the controller box (*p.287 "Controller Box")
3. Toner end sensor [A] ( x 1, 2 hooks each)
4. Replacement and Adjustment
212
4

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
