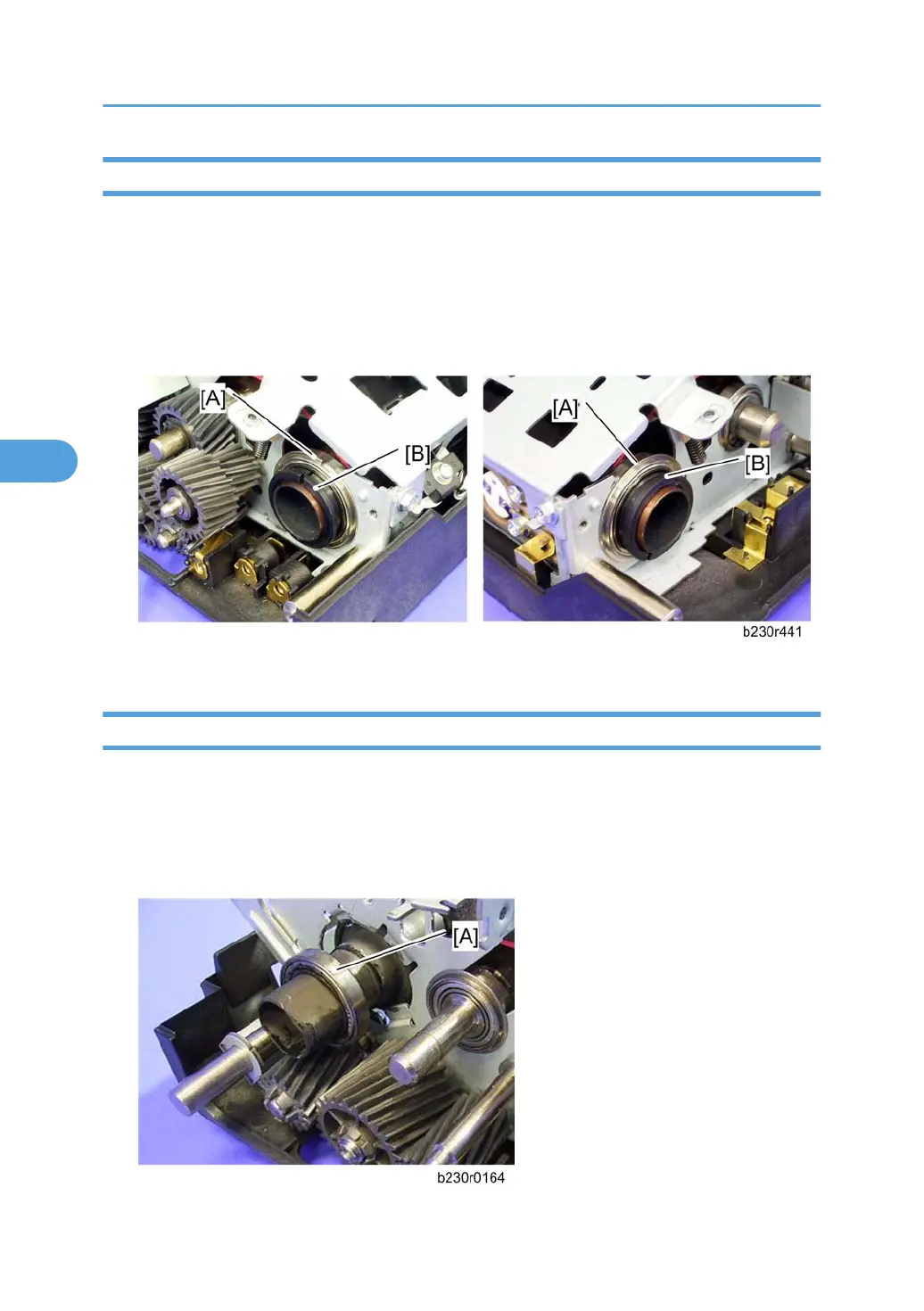

Heating Roller Bearing and Insulating Bushing
1. Fusing unit (*p.248 "Fusing Unit")
2. Fusing upper cover (*p.249 "Pressure Roller Lamp")
3. Rear side stay (*p.251 "Fusing Lamp")
4. Front side stay (*p.249 "Pressure Roller Lamp")
5. Fusing lamp (*p.251 "Fusing Lamp")
6. Remove the rear and front heating roller bearings [A] and insulating bushings [B].
Pressure Roller Bearing
1. Fusing upper cover (*p.249 "Pressure Roller Lamp")
2. Front side stay (*p.249 "Pressure Roller Lamp")
3. Rear side stay (*p.251 "Fusing Lamp")
4. Pressure roller lamp (*p.249 "Pressure Roller Lamp")
4. Replacement and Adjustment
260
4
