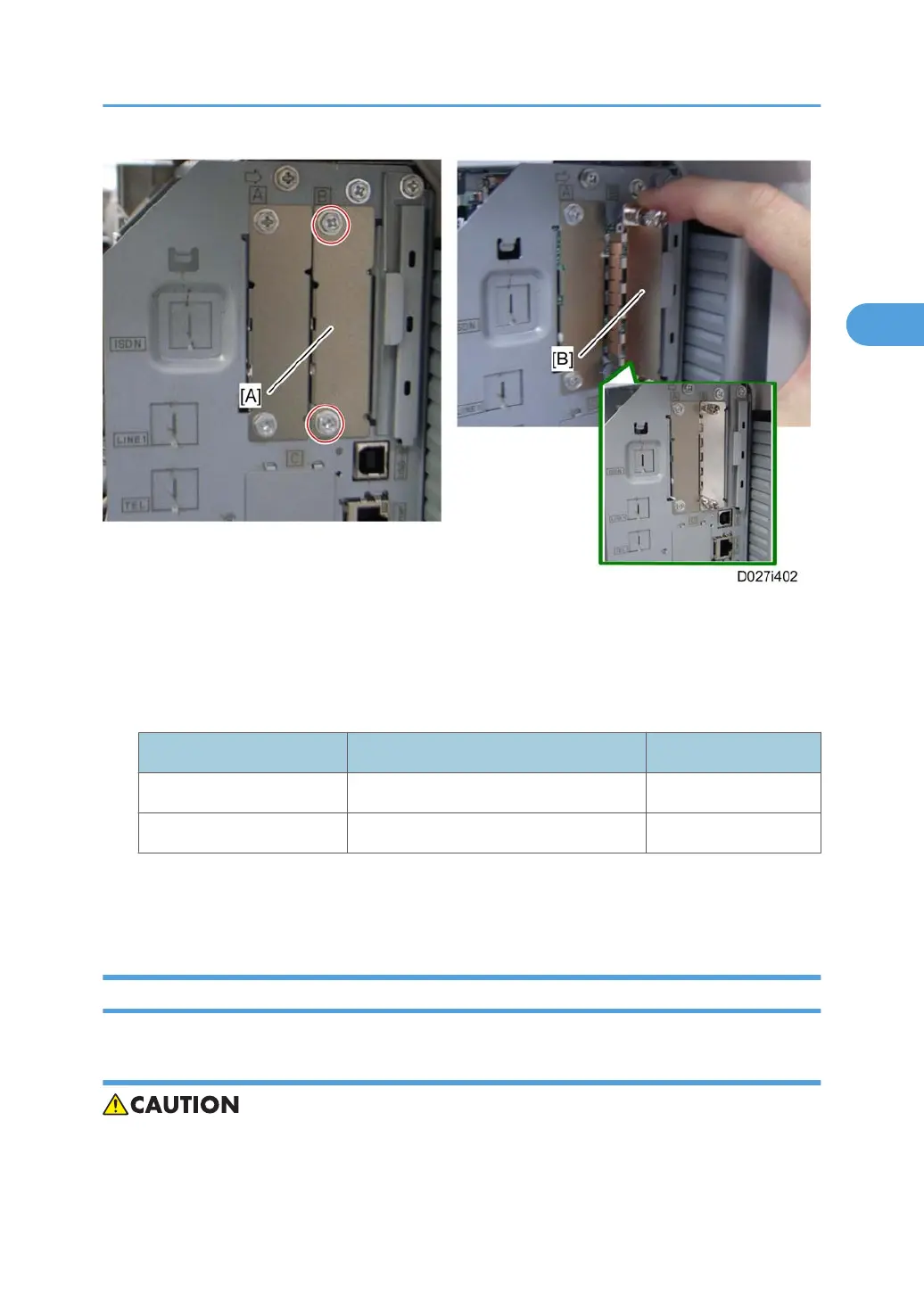

1. Remove the slot cover [A] ( x 2).
2. Install the file format converter [B] into slot B and then fasten it with screws.
3. Plug in and turn on the main power switch.
4. Check or set the following SP codes with the values shown below.
SP No. Title Setting
SP5-836-001 Capture Function (0:Off 1:On) "1"
SP5-836-002 Panel Setting "0"
5. Check the operation.
6. Make sure that the machine can recognize the option (see ‘Check All Connections’ at the end of this
section).
IEEE1284
Installation Procedure
• Unplug the main machine power cord before you do the following procedure.
Controller Options
129
