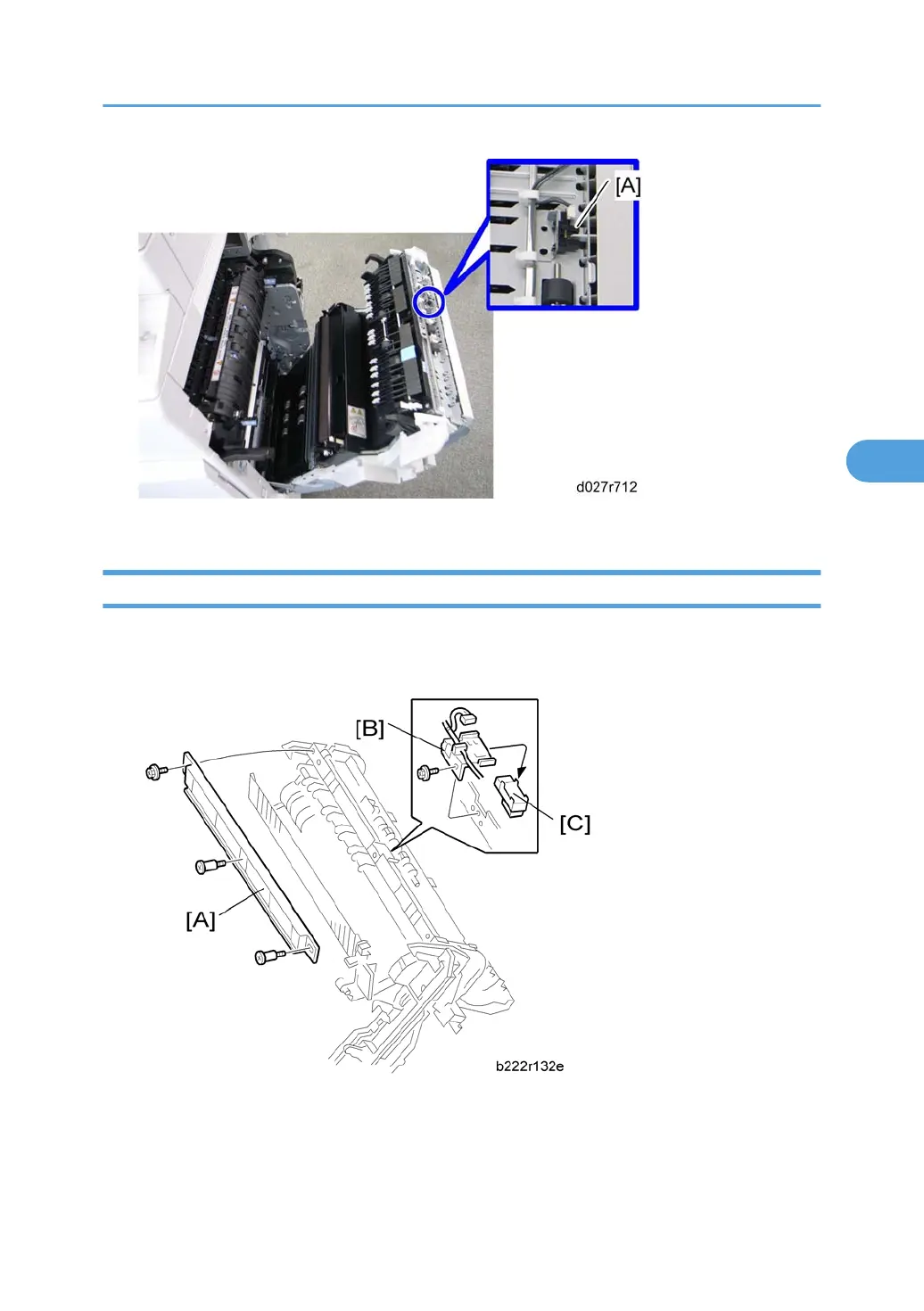

3. Duplex door sensor [A] ( x 1, hook)
Duplex Entrance Sensor
1. Right door cover (* "p.279")
2. Open the right door.
3. Duplex entrance guide [A] ( x1, stepped screw x 2)
4. Duplex entrance sensor bracket [B] ( x 1, x 1)
Duplex Unit
281
4
