Ricoh MPC 2800 AT-C2 User Manual

8. Fusing lamp [C]
Fusing Belt and Pressure Roller
1. Fusing unit (*p.248 "Fusing Unit")
2. Fusing upper cover (*p.249 "Pressure Roller Lamp")

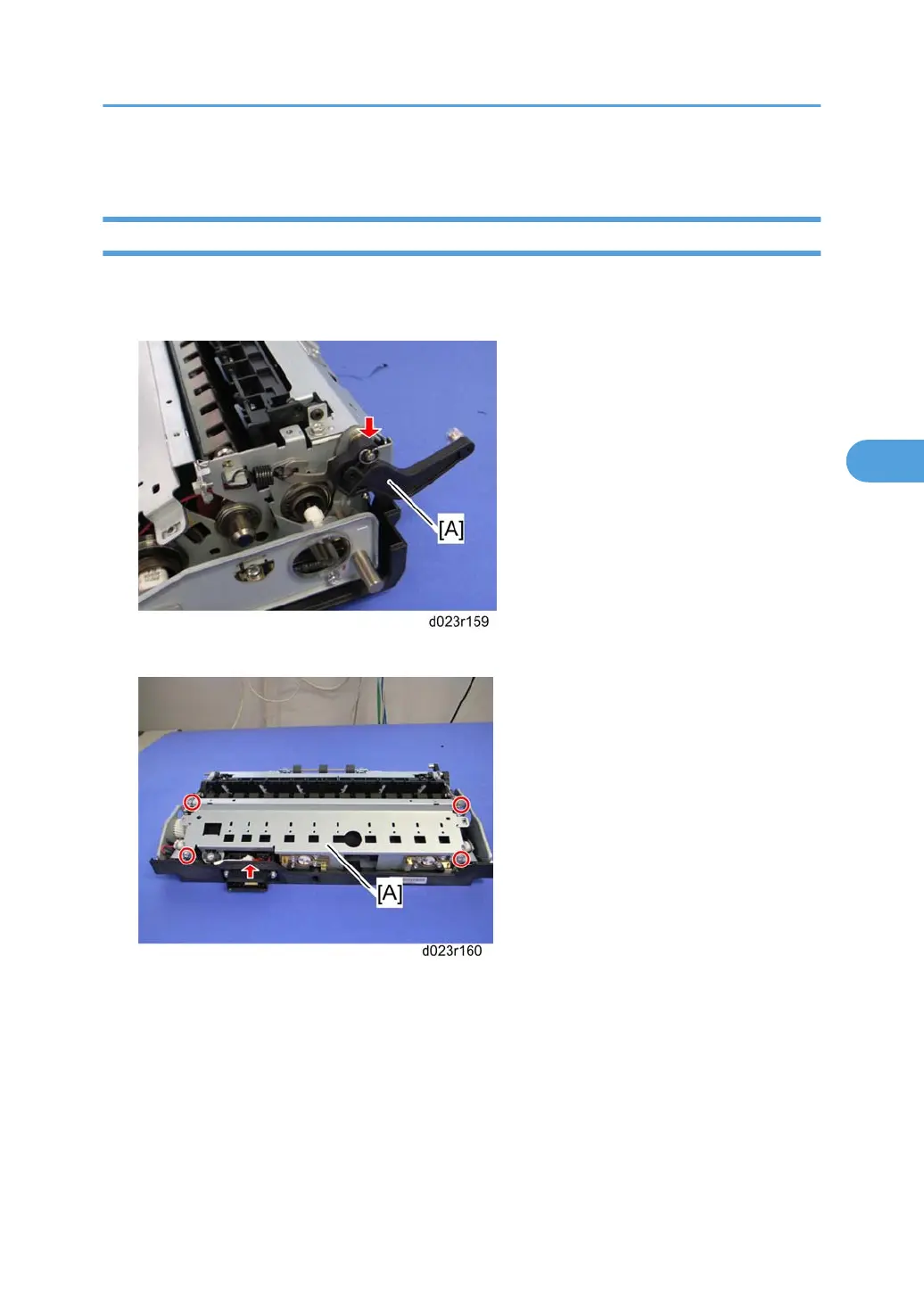

3. Lock lever front and rear [A] (snap ring x 1, spring x 1 each)
4. Top frame [A] ( x 4,  x 1)
5. Pressure roller lamp (*p.249 "Pressure Roller Lamp")
6. Fusing lamp (*p.251 "Fusing Lamp")
Fusing
253
4

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
