When reinstalling the by-pass paper size sensor

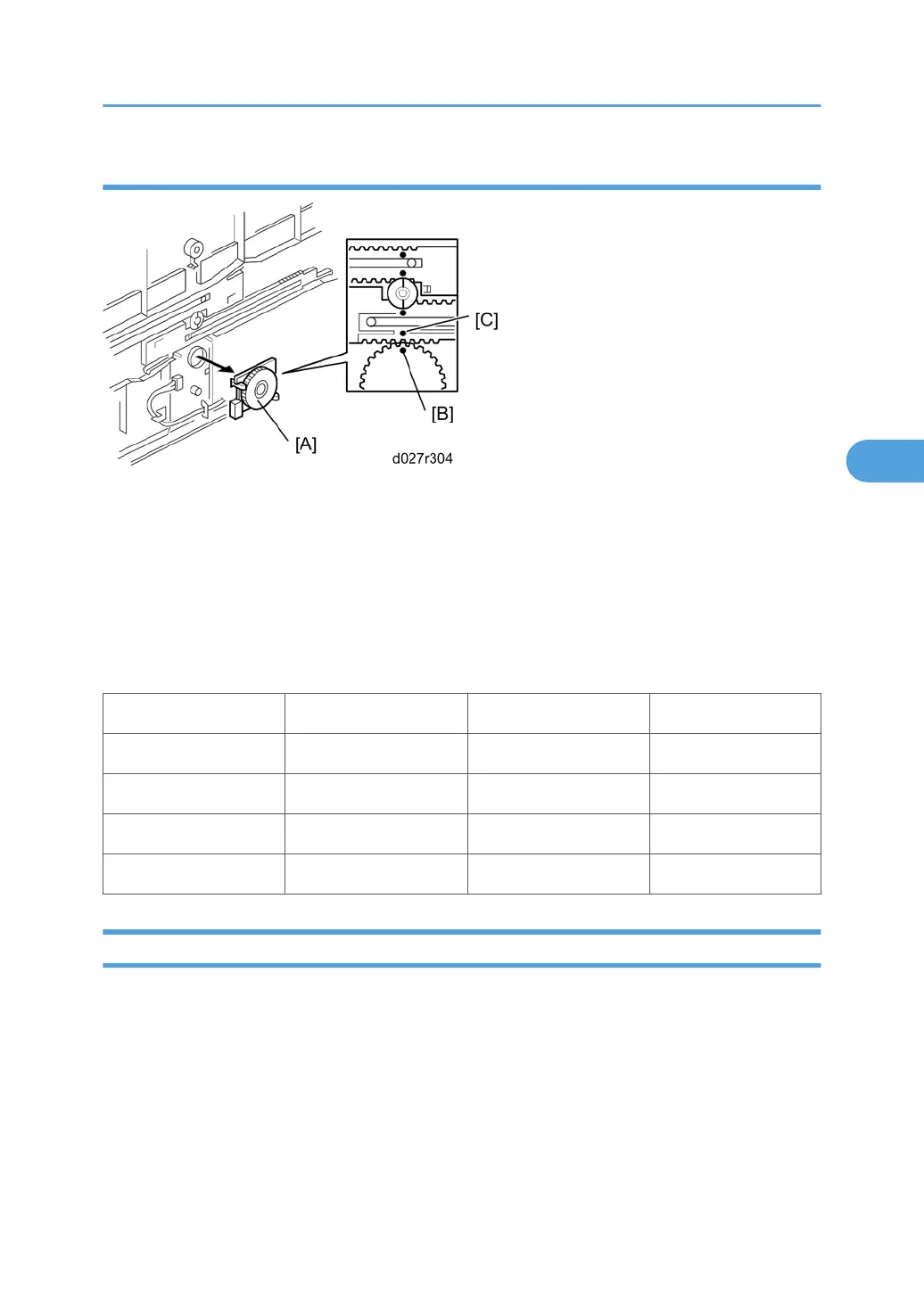

1. Adjust the projection [A] of the left side fence bar (it must be centered).
2. Install the by-pass paper size detection switch so that the hole [B] in this switch faces the projection
[C] of the left side fence bar.
3. Reassemble the copier.
4. Plug in and turn on the main power switch.
5. Check this switch operation with SP5803-011 (By-pass paper size < Input Check).
- Display on the LCD -
Paper Size Display Paper Size Display
A3 SEF 00001110 A5 SEF 00001011
B4 SEF 00001100 B6 SEF 00000011
A4 SEF 00001101 A6 SEF 00000111
B5 SEF 00001001 Smaller A6 SEF 00001111
By-pass Bottom Tray
1. Open the right door.
2. By-pass tray cover (*p.268 "By-pass Paper Size Sensor and By-pass Paper Length Sensor")
Paper Feed
269
