Gear Unit
1. All PCU's (* “p.198”)
2. Image transfer belt unit (* "p.213")
3. Rear cover (* "p.169")
4. Open the controller box (* "p.287")
5. Third duct (* "p.205")
6. Left cover (* "p.169")
7. PSU bracket (* "p.292")

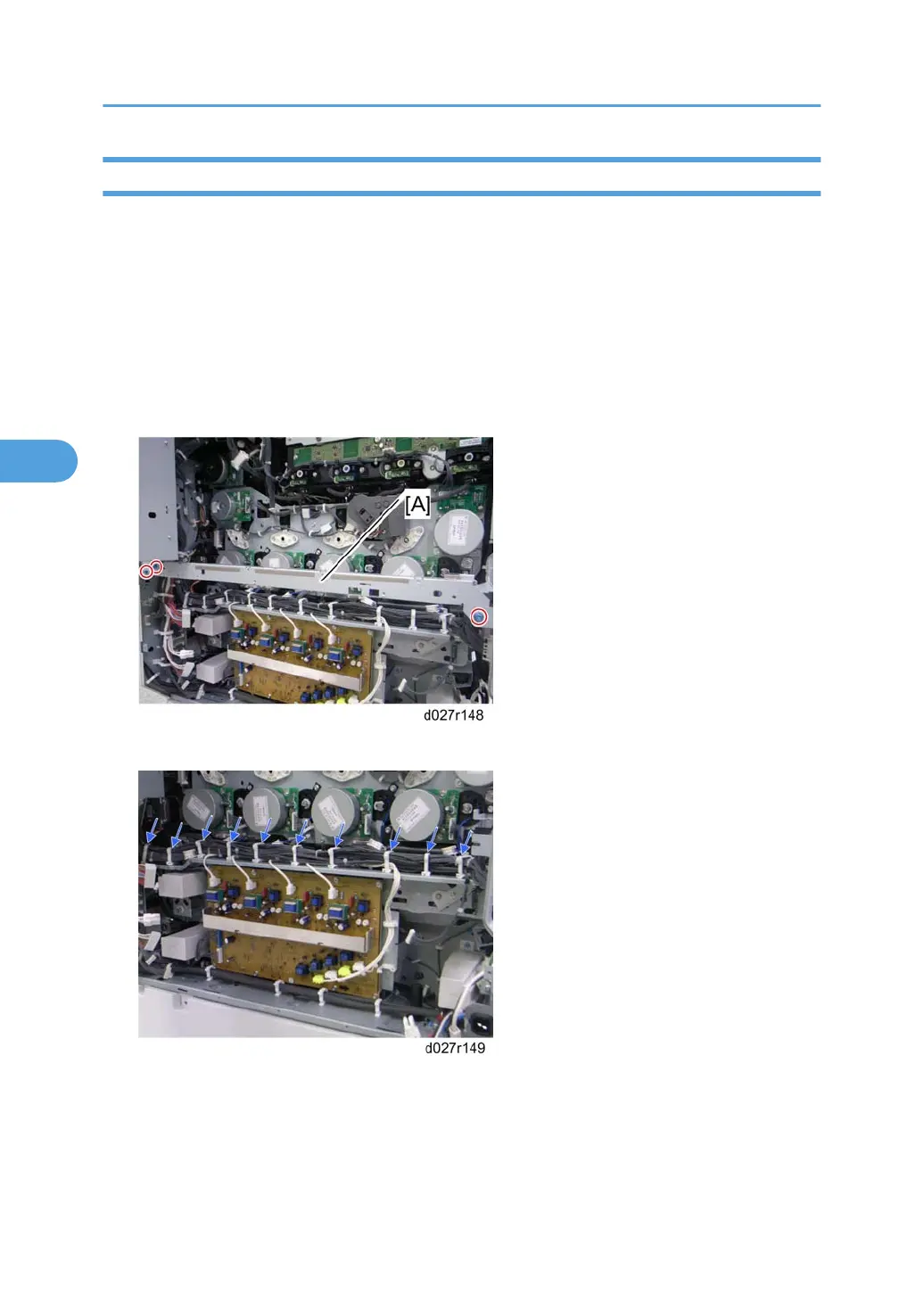

8. Remove the rear stay [A] ( x 3).
9. Remove three clamps (red arrows) and release seven clamps (blue arrows).
4. Replacement and Adjustment
228
4
