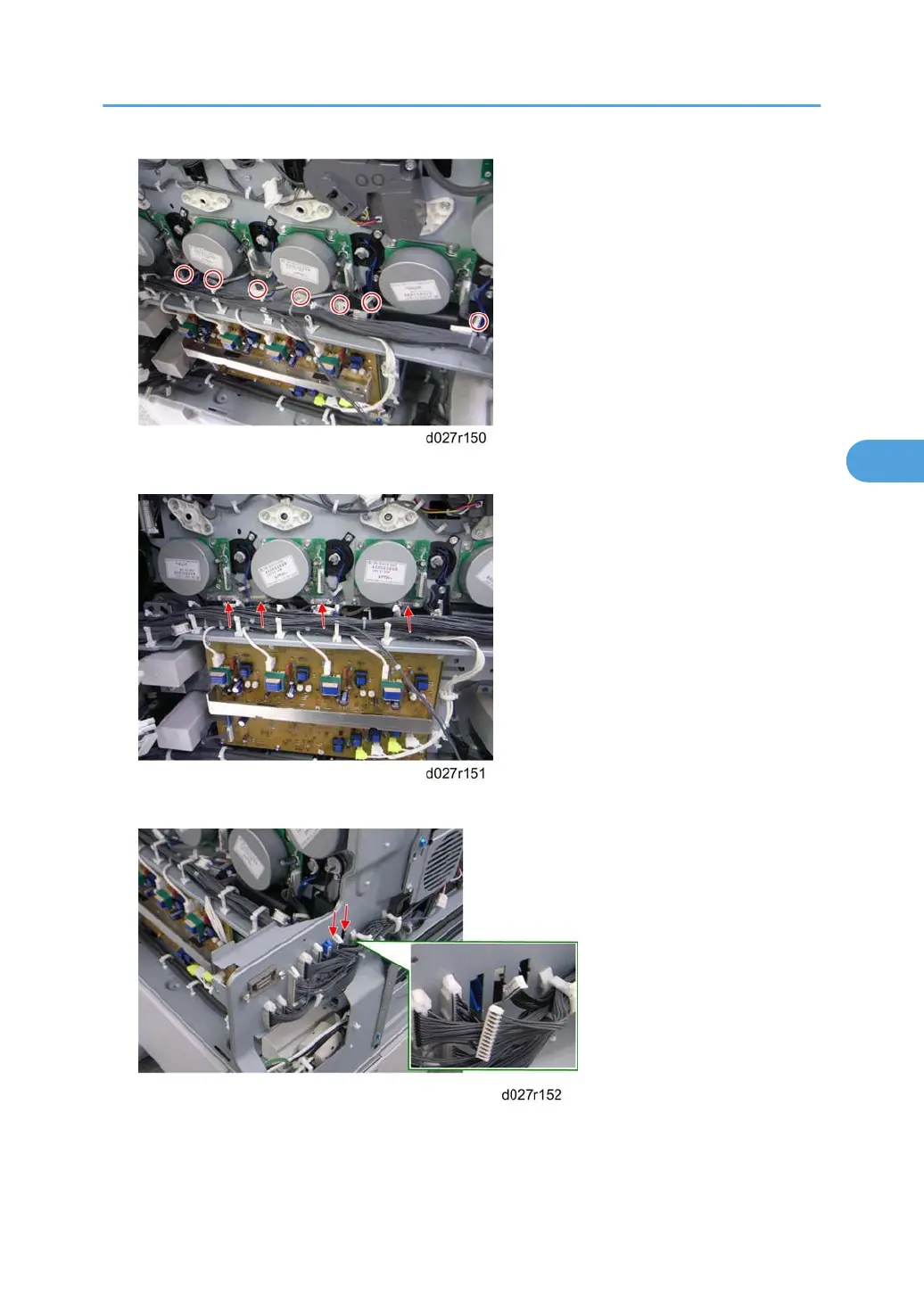

10. Release seven clamps and turn each harness aside.

11. Disconnect four connectors (red arrows).

12. Disconnect two connectors (red arrows) and put these harnesses inside the machine.

Drive Unit

229

4
