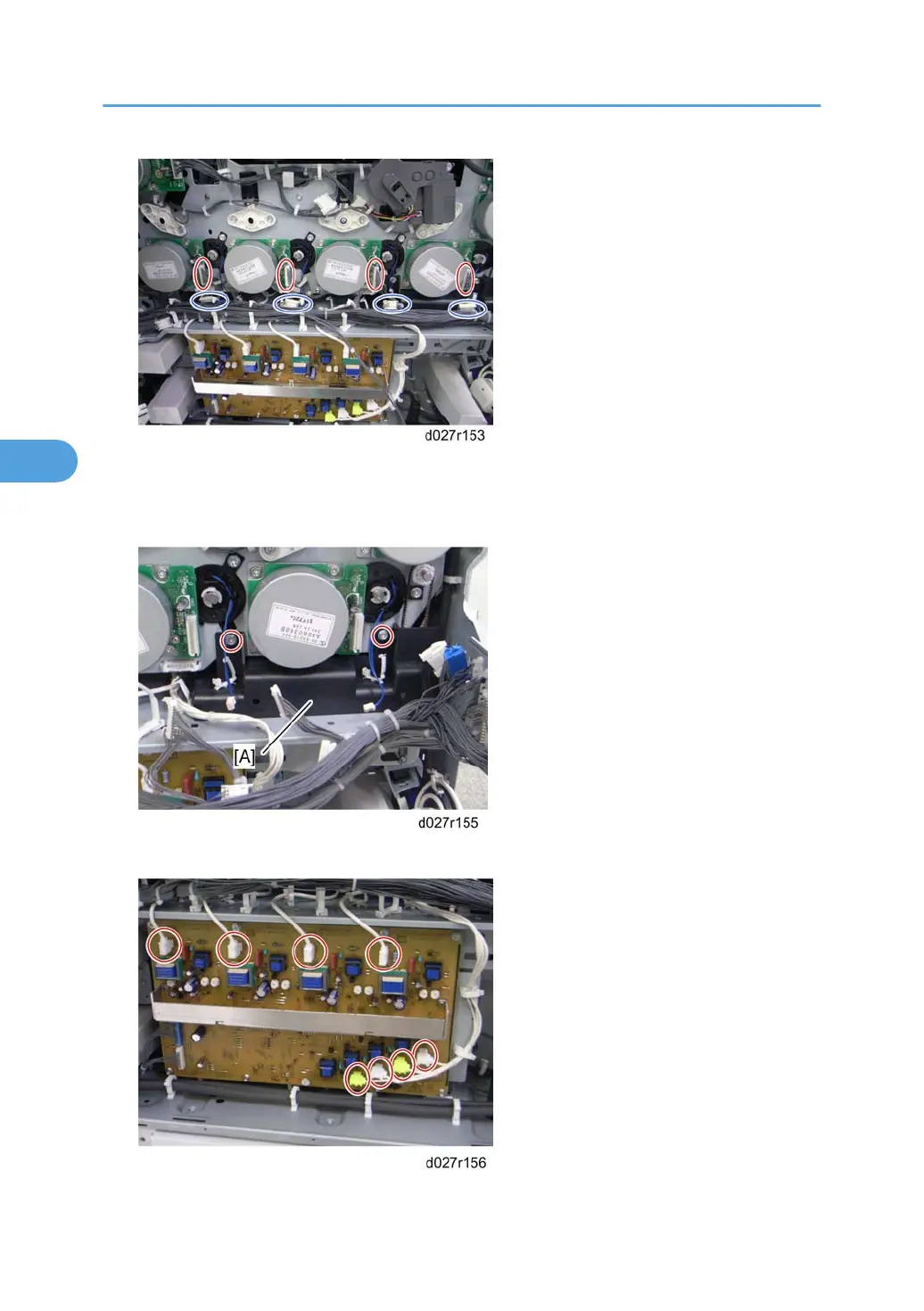

13. Disconnect each connector (red circles) from the drum/development drive motors ( x 1,  x 1

each).

14. Disconnect each connector (blue circles) from the development clutches ( x 1 each).

15. Cover [A] ( x 2)

4. Replacement and Adjustment

230

4
