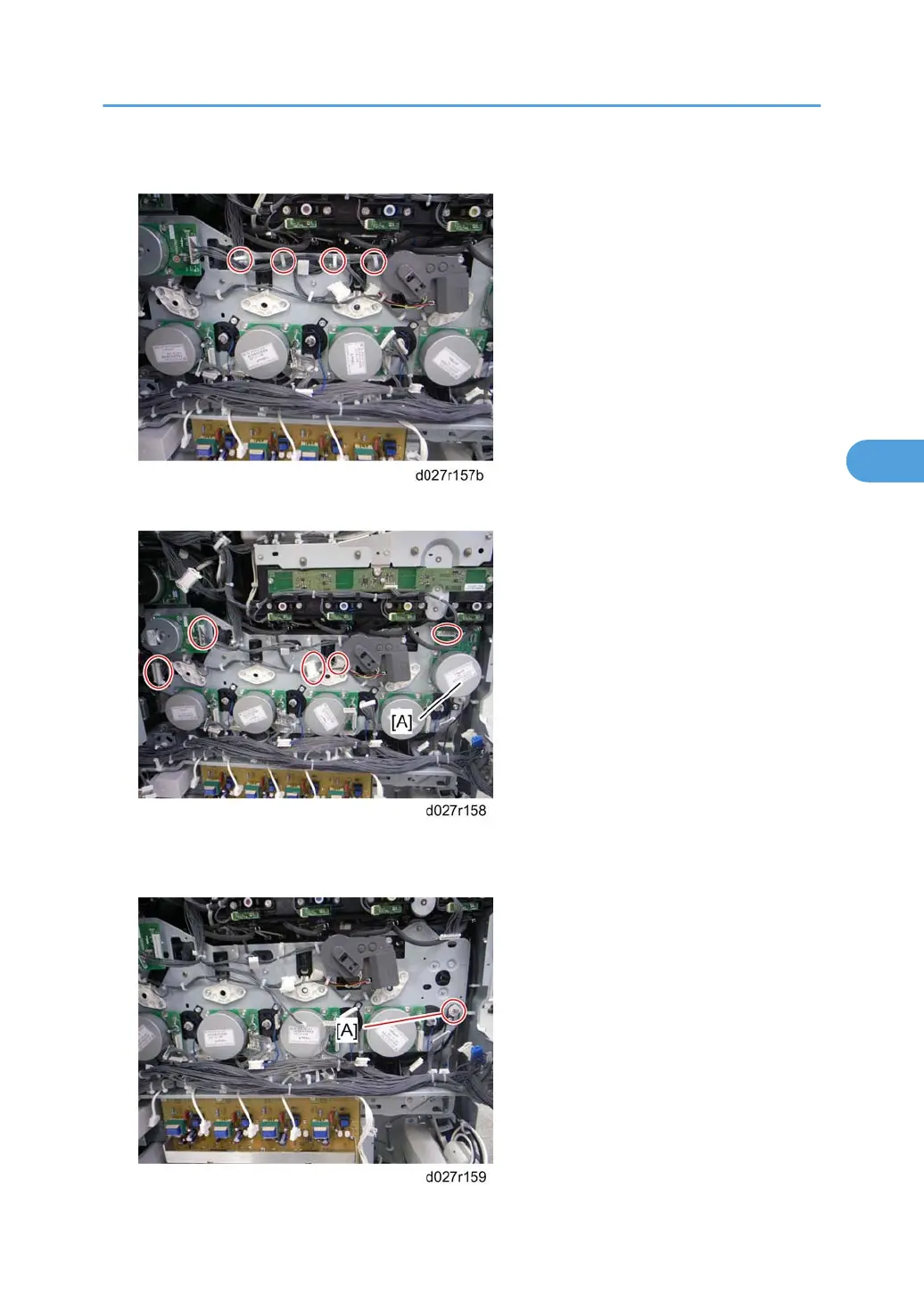

16. Disconnect eight connectors from the high voltage supply board ( x 8,  x 2).

17. Release four clamps (red circles) and turn the harnesses aside.

18. Disconnect five connectors (red circles) ( x 5).

19. Toner transport motor [A] ( x 3)

Drive Unit

231

4
