Key Counter Bracket
Installation Procedure

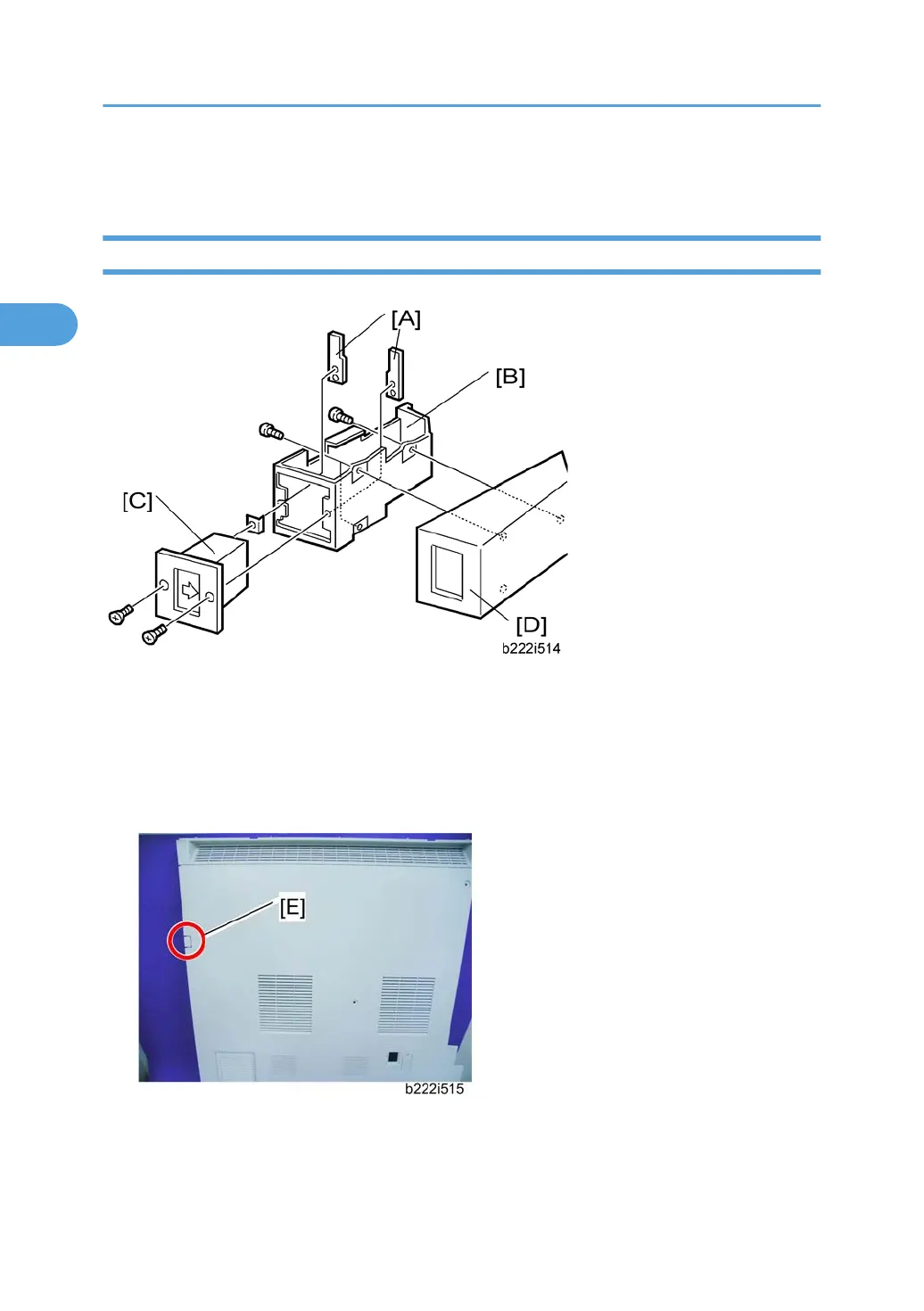

1. Hold the key counter plate nuts [A] on the inside of the key counter bracket [B] and insert the key
counter holder [C].
2. Secure the key counter holder to the bracket ( x 2).
3. Install the key counter cover [D] ( x 2).
4. Rear cover (*"Rear Cover" in the Replacement and Adjustment section)
5. Cut off the part [E] of the rear cover.
2. Installation
100
2
