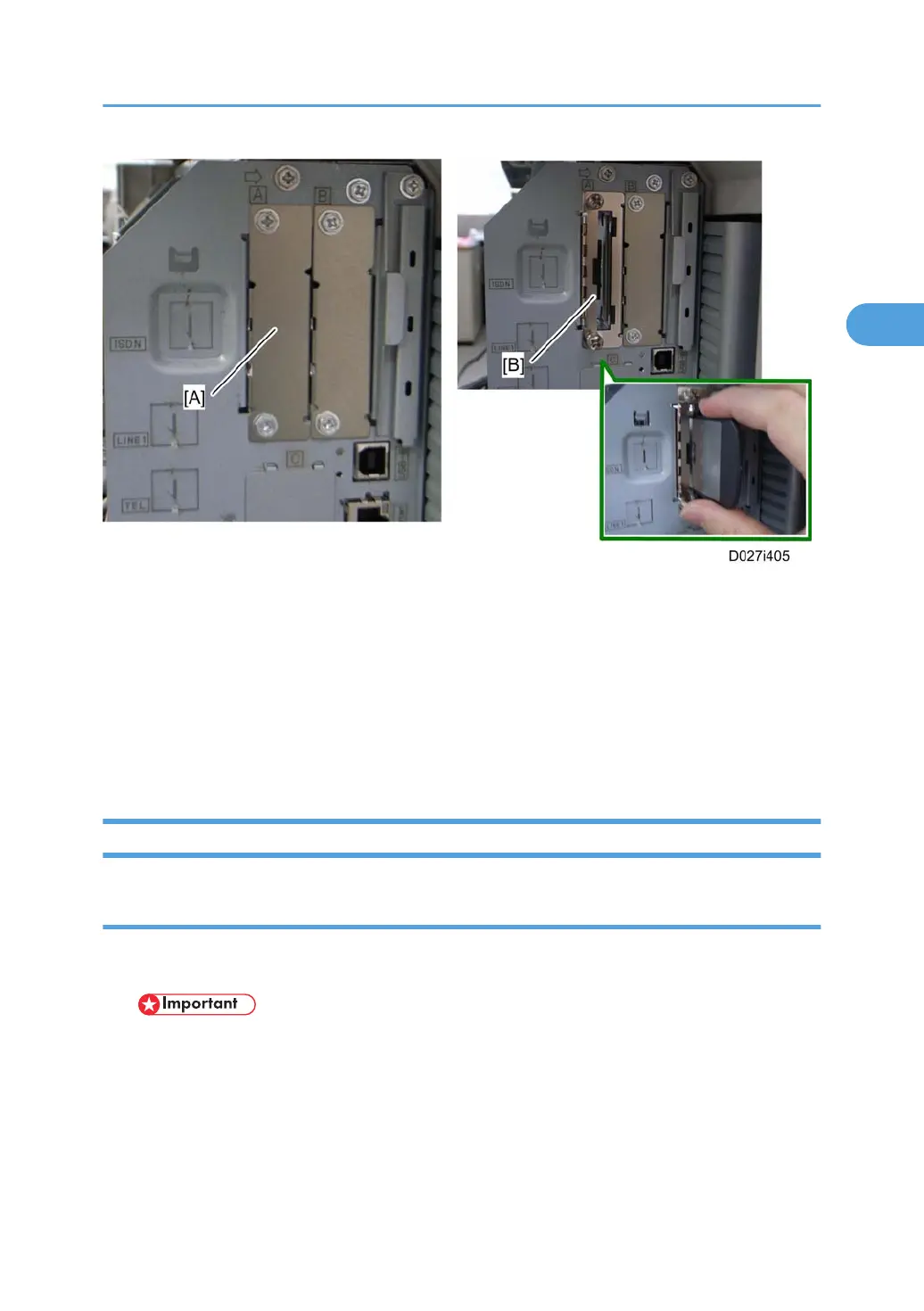

1. Remove the slot cover [A] ( x 2).
2. Install the Bluetooth board [B] (Knob-screw x 2) into the slot A.
3. Insert the Bluetooth card into the Bluetooth card adaptor.
4. Install the Bluetooth card adaptor on the Bluetooth board.
5. Attach the antenna cap to the Bluetooth board.
6. Make sure that the machine can recognize the option (see ‘Check All Connections’ at the end of this
section).
Data Overwrite Security Unit Type H (D377)
Before You Begin the Procedure
1. Confirm that the Data Overwrite Security unit SD card is the correct type for the machine. The correct
type for this machine is "Type H".
• If you install any version other than "Type H", you will have to replace the NVRAM and do this
installation procedure again.
2. Make sure that the following settings are not at their factory default values:
• Supervisor login password
• Administrator login name
• Administrator login password
Controller Options
135
