Ricoh MPC 2800 AT-C2 User Manual

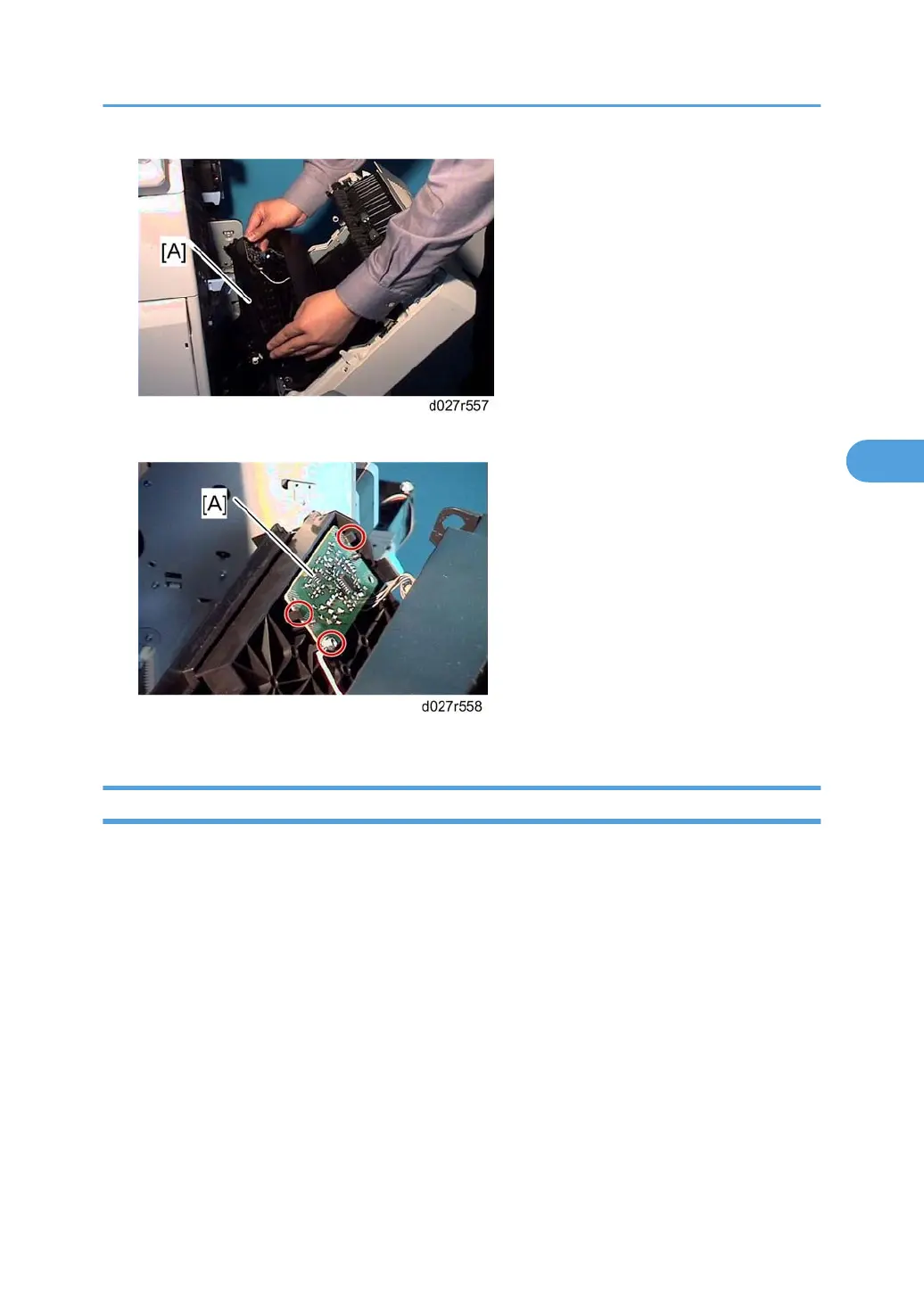

3. Paper transfer roller case [A]
4. High voltage supply board [A] ( x 3,  x 1, ground cable x 1)
ID Sensor Board
1. K PCU (*p.198 "PCU")
2. Open the right door.
3. Fusing unit (*p.248 "Fusing Unit")
4. Image transfer belt unit (*p.213 "Image Transfer Belt Unit")
Paper Transfer
223
4

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
