Drive Layout

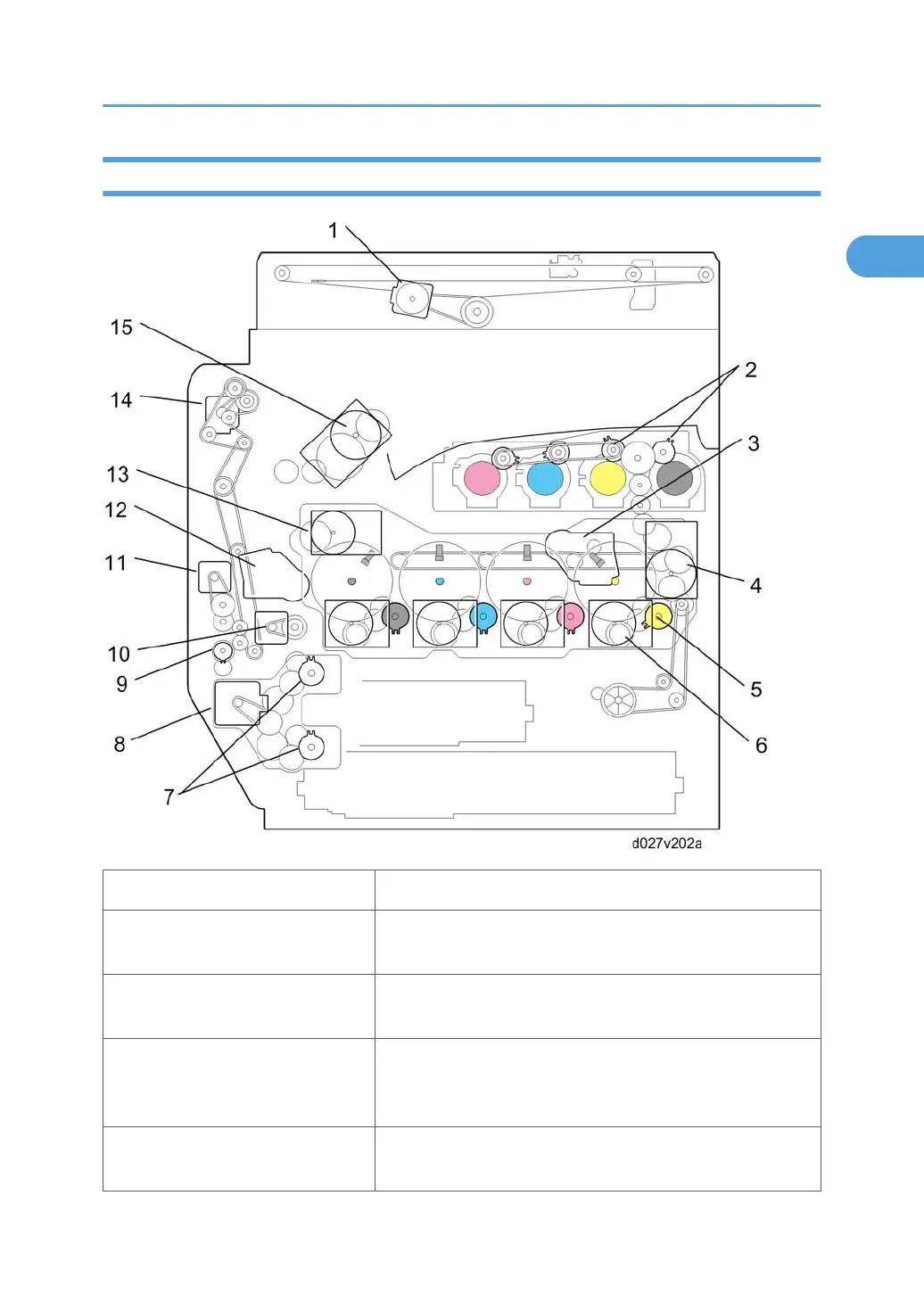

1. Scanner motor: Drives the scanner unit.
2. Toner supply clutch-K and -CMY:
Turns on/off the drive power to the toner supply unit (K and -
CMY).
3.ITB (Image Transfer Belt) contact
motor:
Moves the ITB into contact and away from the color PCUs.
4. Toner transport motor:
Drives the toner attraction pumps and the toner collection coils
from the PCUs, from the transfer belt unit, and inside the toner
collection bottle. Also rotates the toner bottles.
5. Development clutch (K, Y, M, C):
Turns on/off the drive power to the development unit (K, Y, M,
C).
